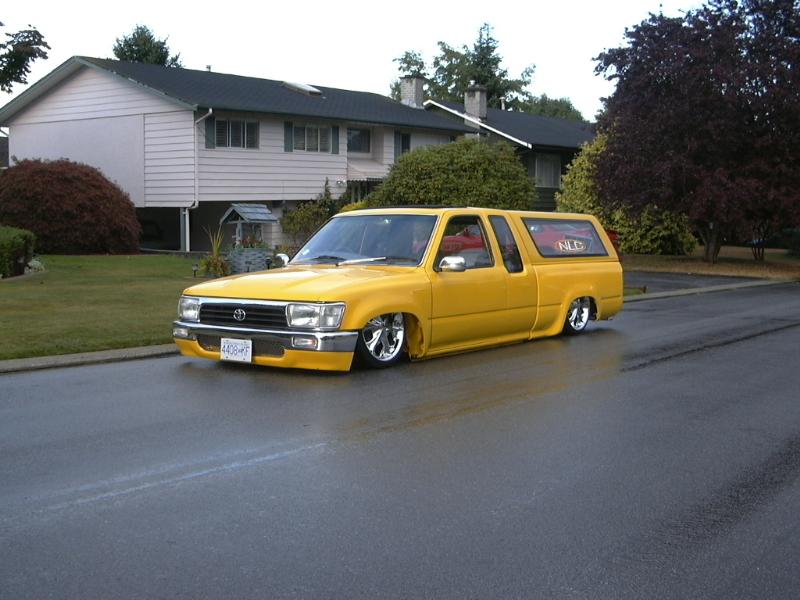

1989 Toyota 2wd Pickup

TOYBOY89 (1 owner profile)
Purchased: 2000-12-21

Engine

***FOR SALE***

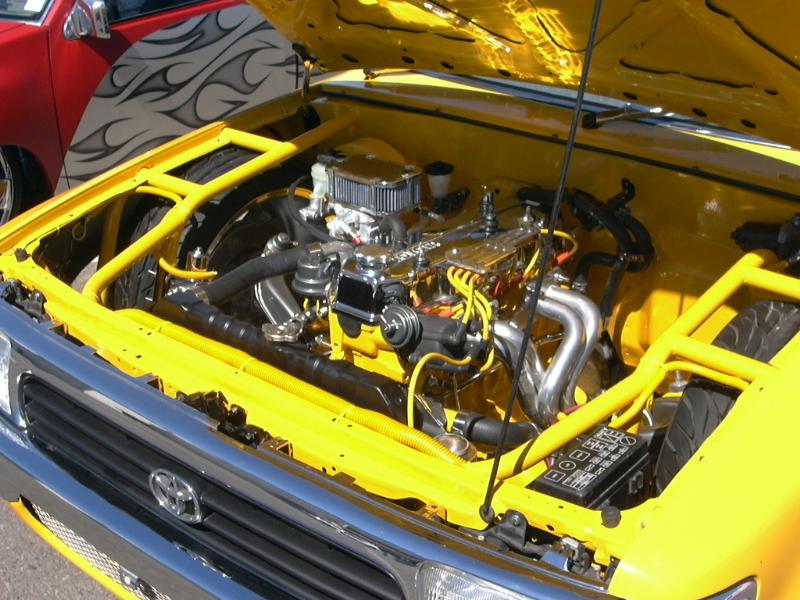

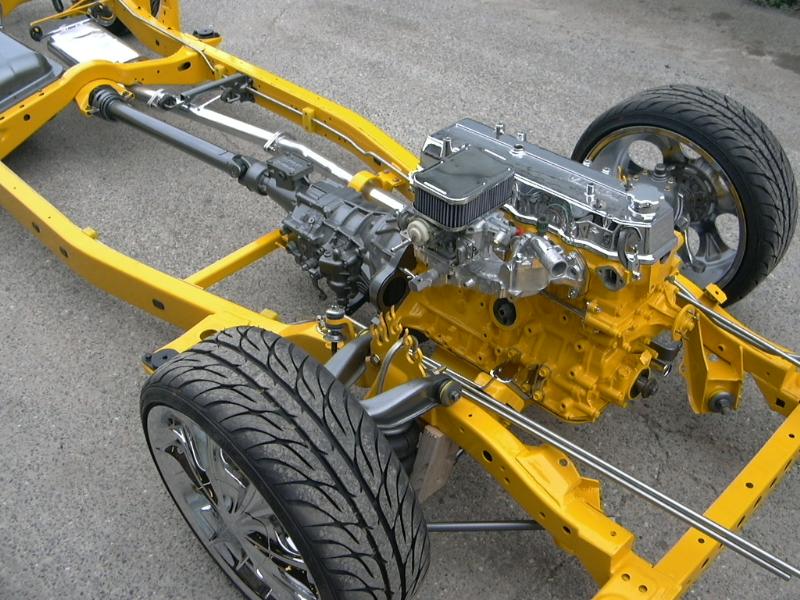

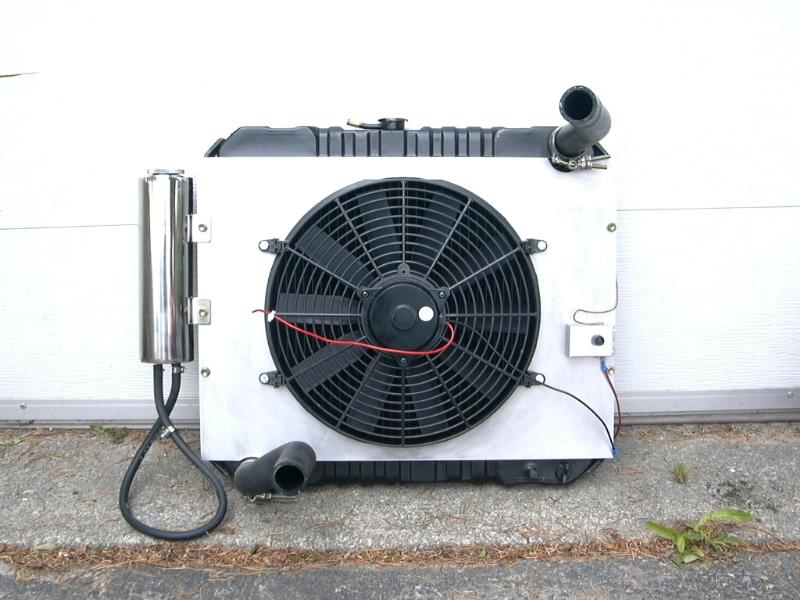

Original 2.4L, 22R, completely rebuilt, bored 0.020" over, rebuilt head with mild camshaft and LC Engineering dual row timing chain conversion. Billet oil cap and spark plug wire holder. Custom built oil pan and modified oil pickup to provide ground clearance with lowered motor. Hedman Shorty header, 2.5" Ceramic coated exhaust with Flowmaster muffler, Weber carb, Flex-A-Lite electric fan, lots of chrome and paint, Optima Battery. Engine maching done by Rons engine machine, assembly and modifications all performed by Me: No Limits Customs.

Exterior

***FOR SALE***

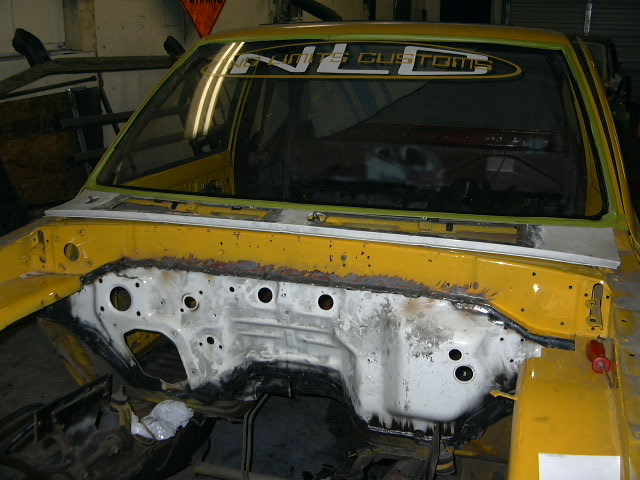

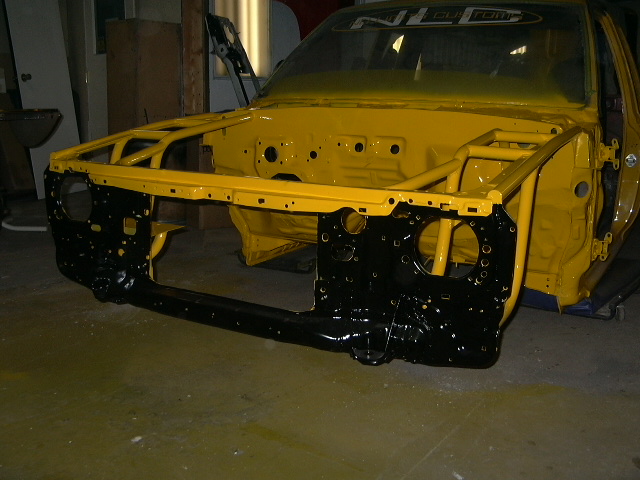

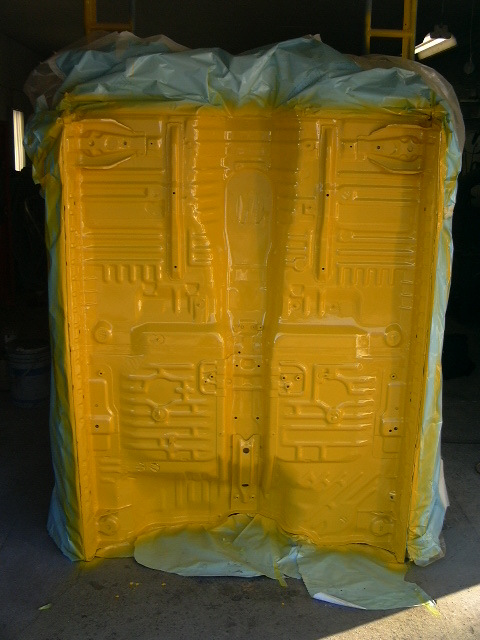

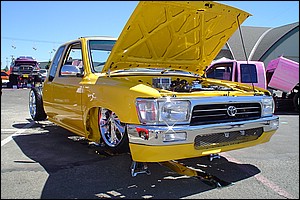

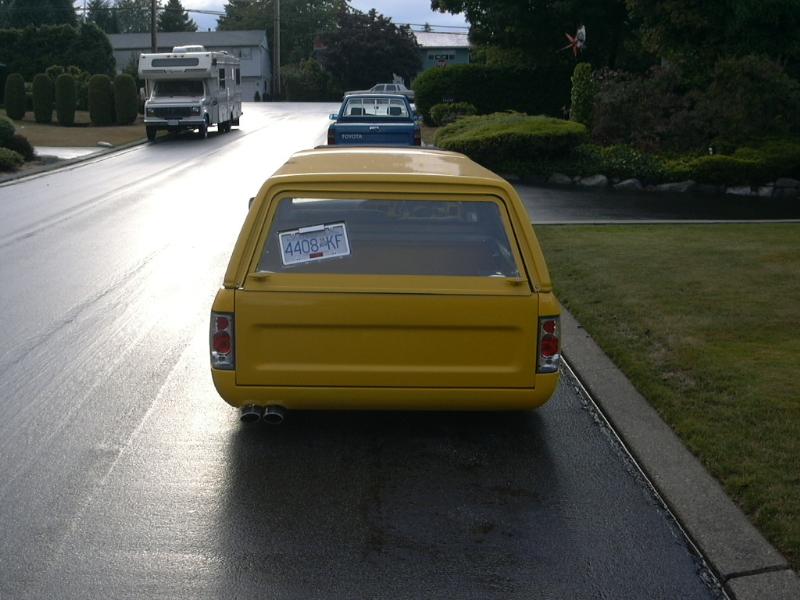

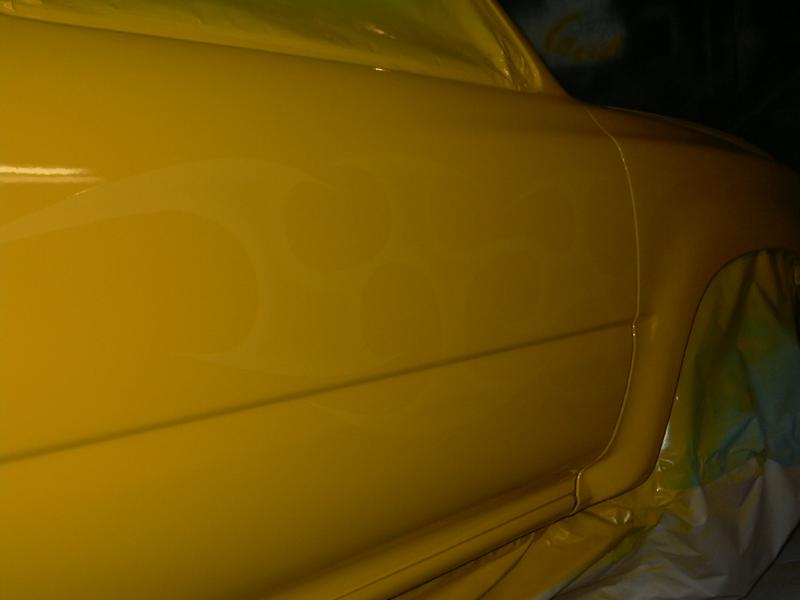

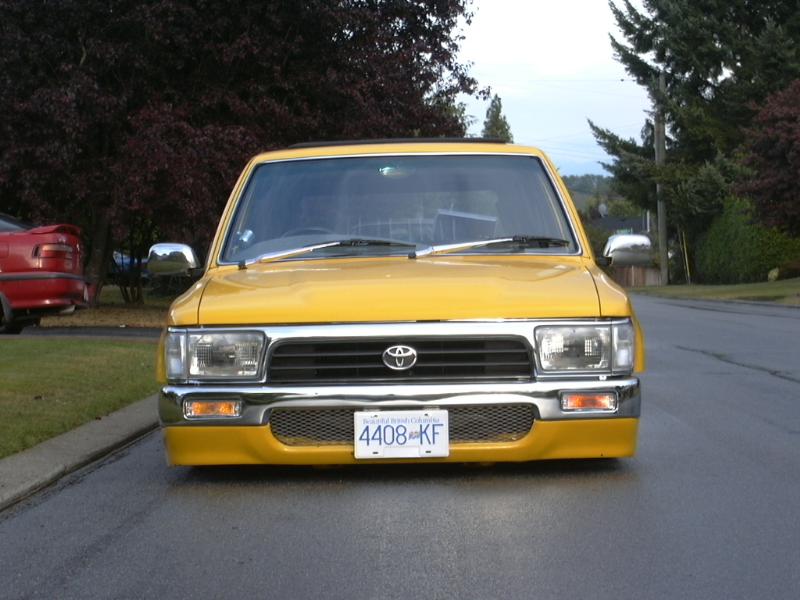

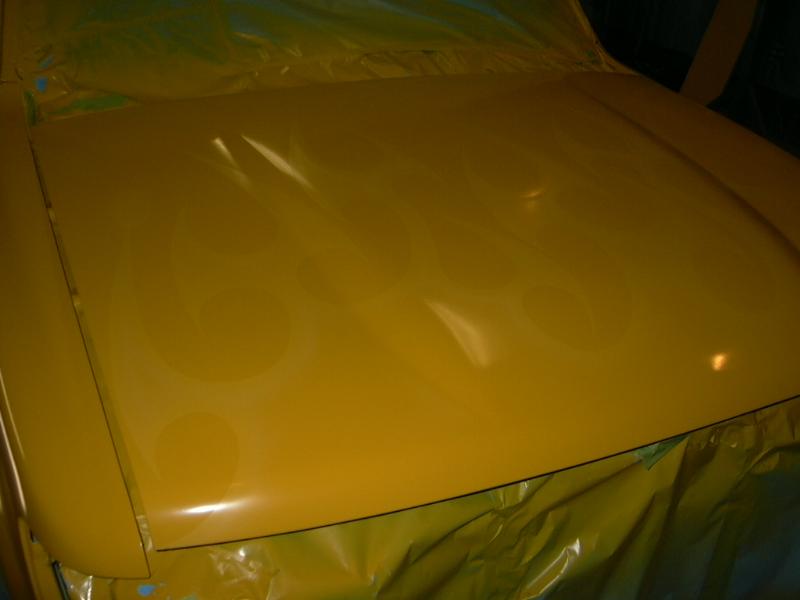

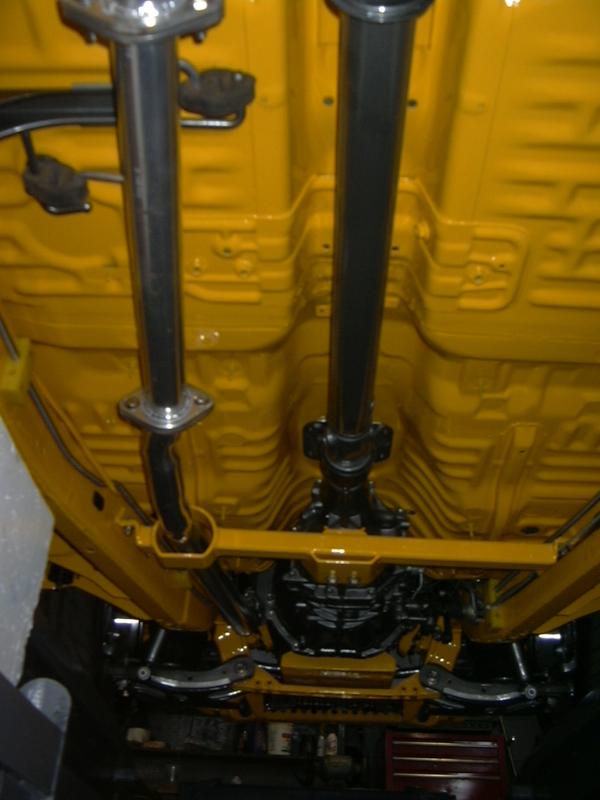

2" Body Drop, Roll Pan, Sprint Canopy shell on air cylinder lift system, with custom clear side glass, and lexan rear window with frenched tilted license box. 95 Toyota 4 runner fenders, headlights, bumper, valance, grill and mirrors, Shaved: door handles, tailgate handle, antenna, gas door, box side guards, wiper cowl vents, hood squirters. Wipers swapped to opposite side to accomodate right hand drive. Bottom of body pan painted to match exterior. Inner box panels removed and hand built tube frame for box. Upgraded to chrome; mirrors, wipers, windwhield trim, front bumper, grill. Street Beat Sliding Rag top. Euro tail lights. Custom built checkerplate storage box. Assembly and modifications all performed by Me: No Limits Customs.Paint is PPG Deltron 3000 Base/Clear: Dodge Viper Yellow with ghost tribal flames on hood, fenders and doors, Flames drawn by Sublime Artistry, Paint sprayed by Wicked Performance

Interior

***FOR SALE***

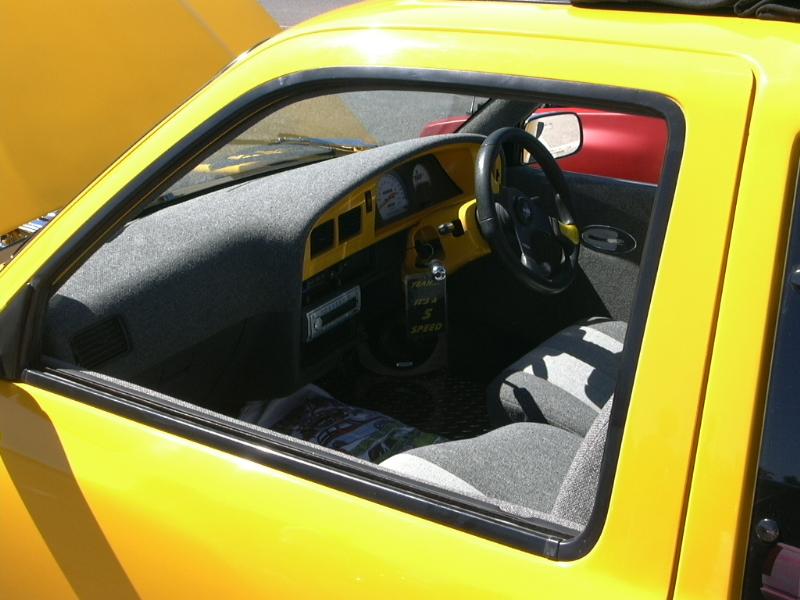

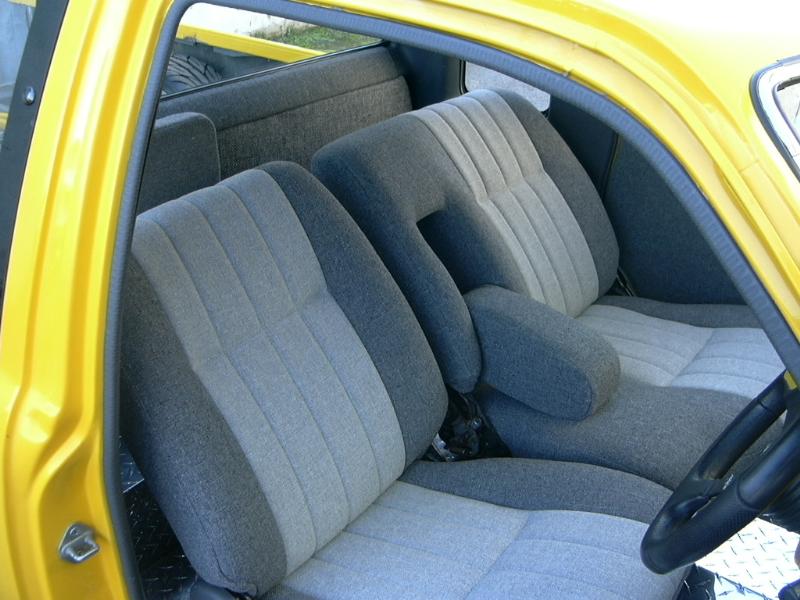

Swapped to right hand drive and 5 speed, left hand column shifter (all parts from a 92 Japanese Toyota). 2 tone grey tweed with painted dash pieces and arm rests, Checkerplate rear floor and lower door panels. Polished stainless rearview mirror, Oval polished aluminuim door handles, and brushed aluminium window cranks. Autometer Tach, oil pressure, and volt gauges. Assembly and modifications all performed by Me: No Limits Customs.

Suspension

***FOR SALE***

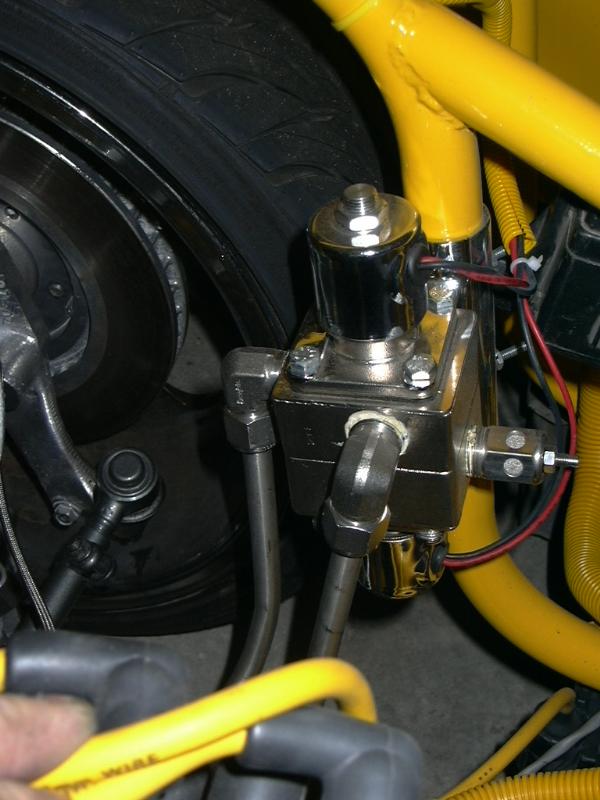

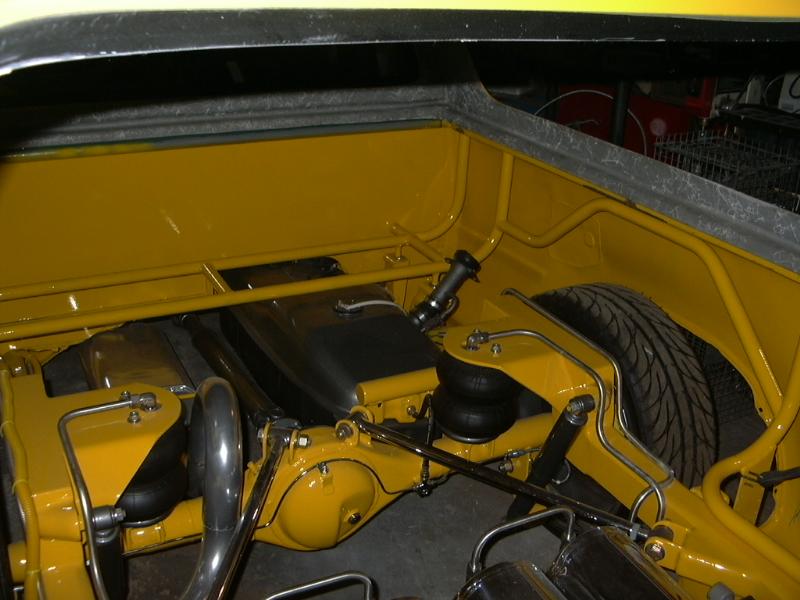

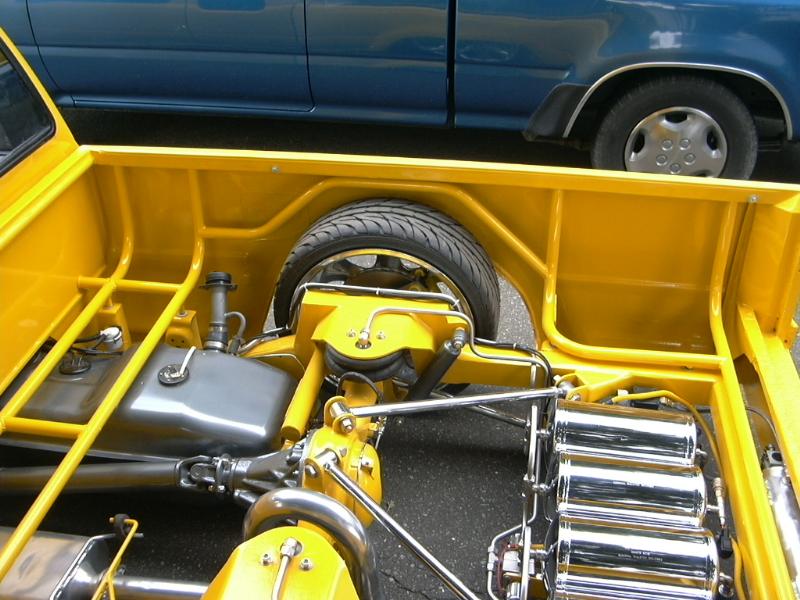

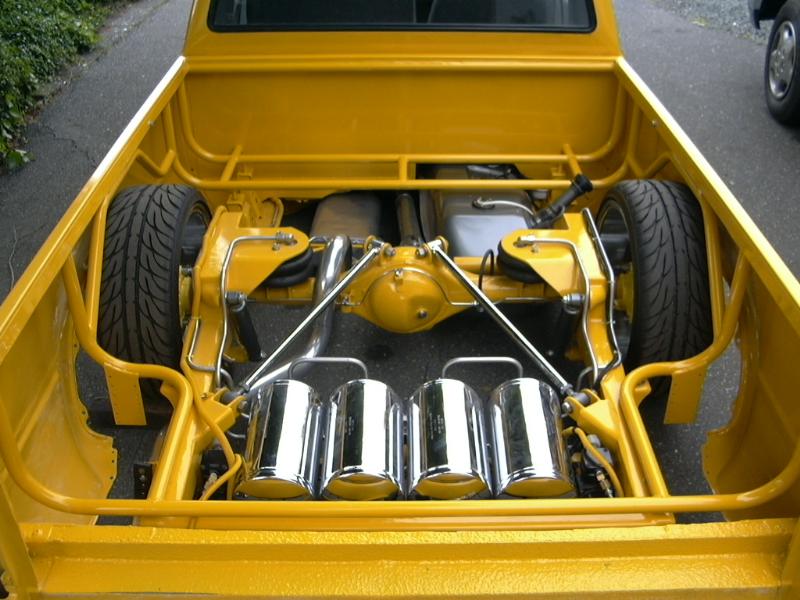

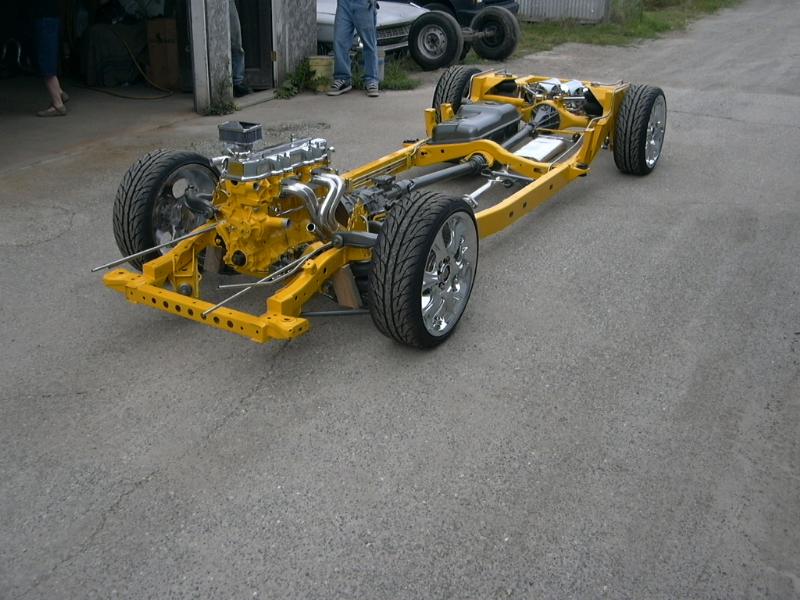

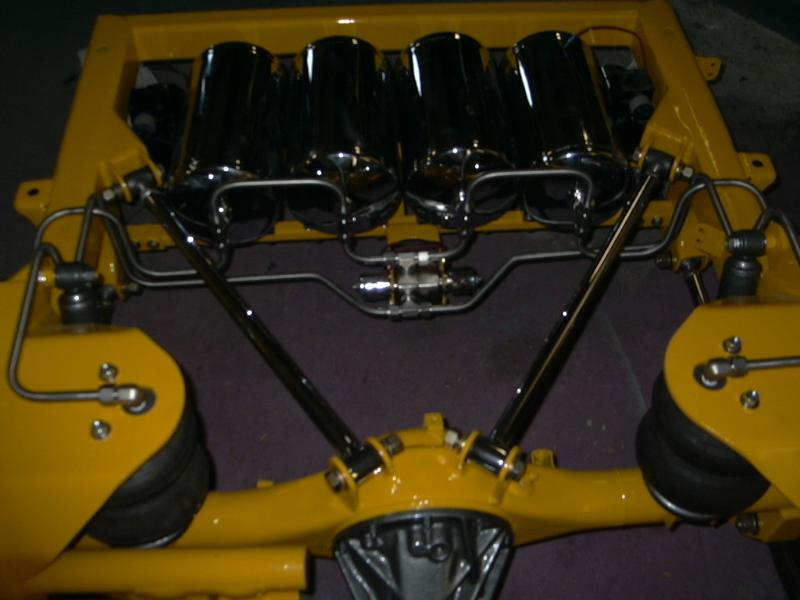

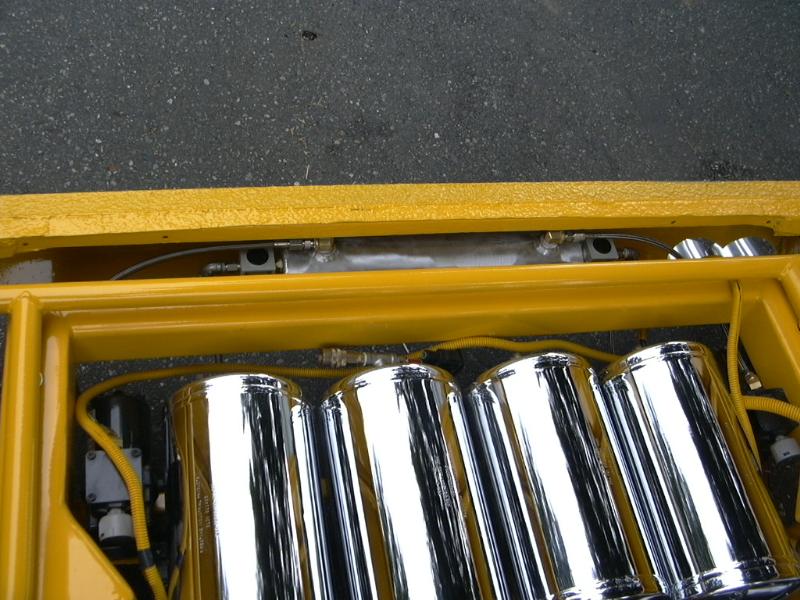

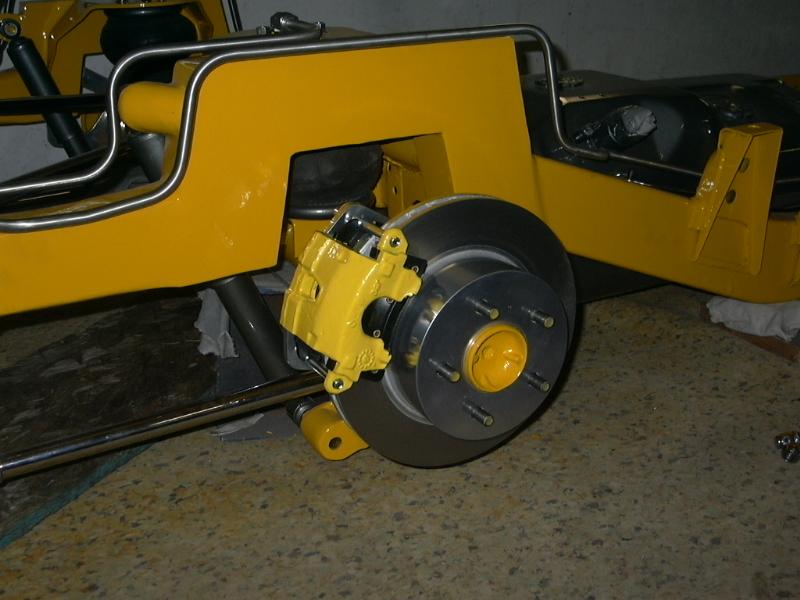

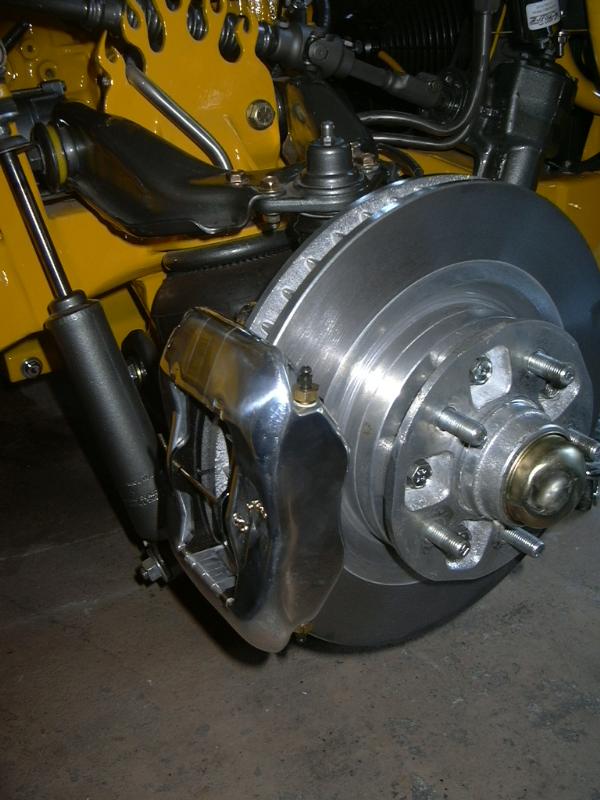

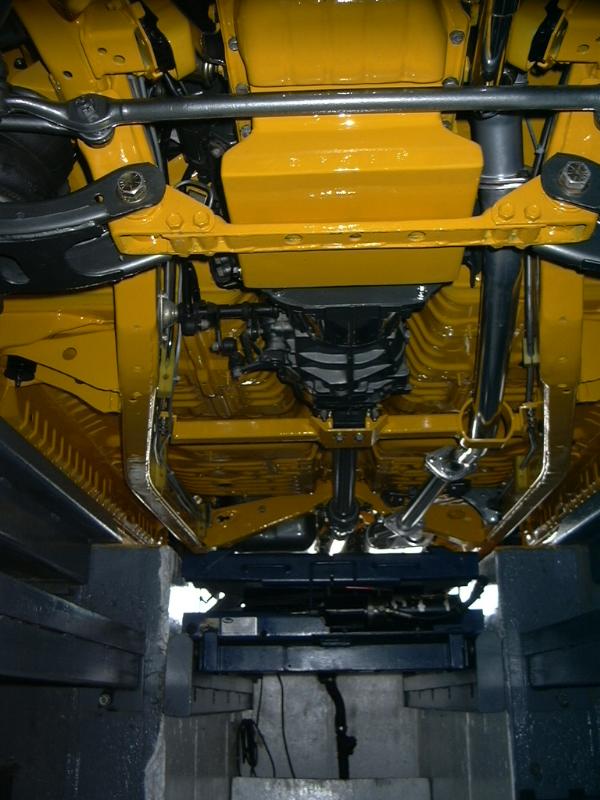

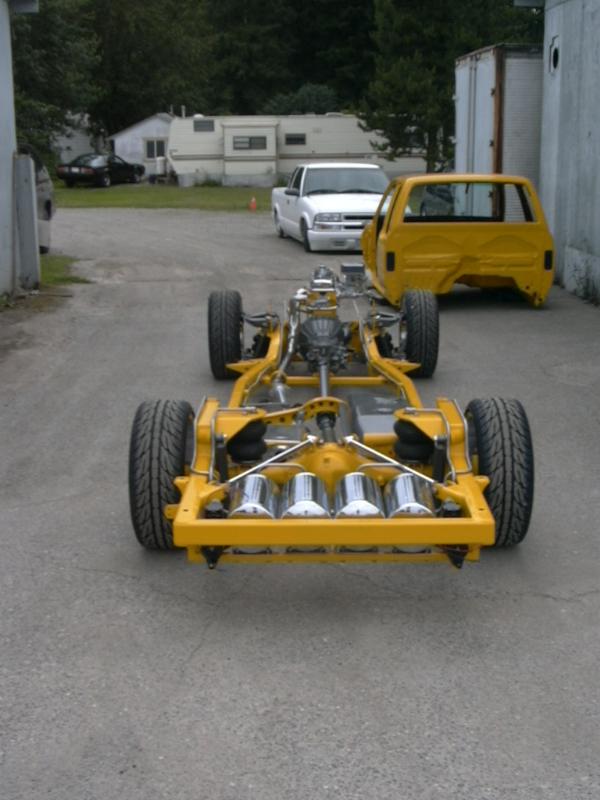

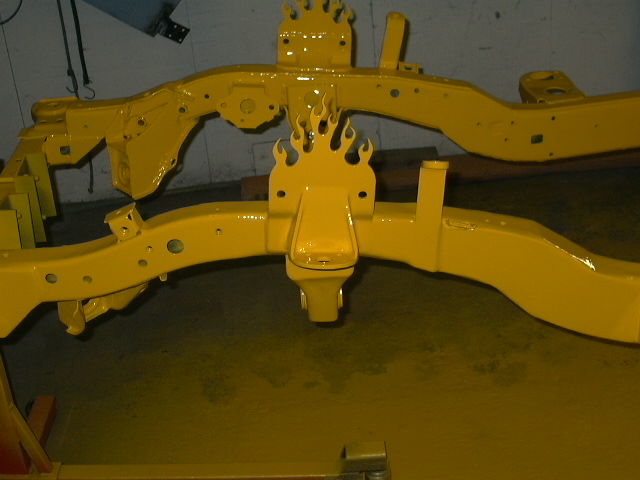

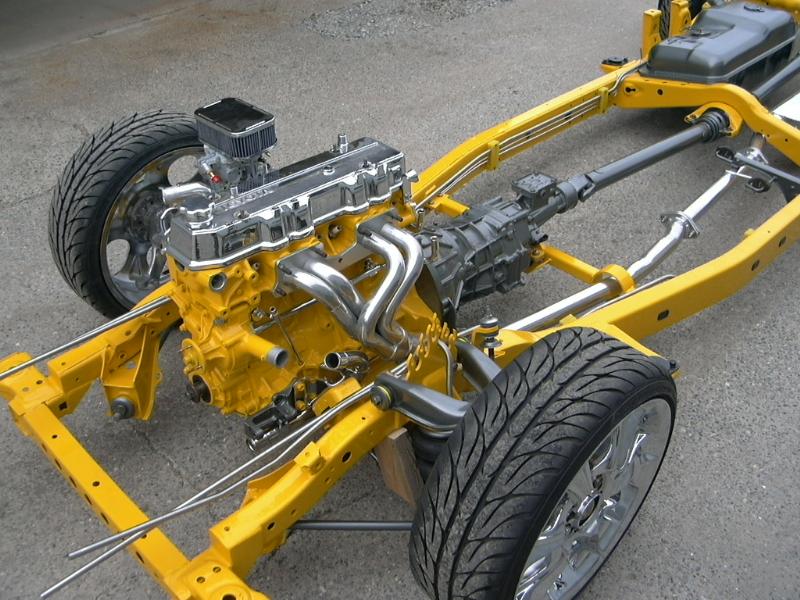

Frame off custom Resto. Original frame notched and plated in the rear with new rear cross member. Z’d 1ā€ and plated in the front. Custom transmission crossmember, motor mounts dropped 1ā€ with modified engine crossmember. Front frame horns dropped 2ā€ for body drop. Flame shaped front bag brackets. Modified and reinforced strut rod mounts. All reversed NLC 4 link, 4 Firestone airbags, Chrome, 2 Firestone 9210 compressors with steel braided airline into 1 gallon custom aluminium air cooler tank with drain valve and water seperators into steel braided airlines, feeding the 4 chrome Firestone 2 gallon airtanks, from there the rest of the airline is 1/2" Stainless Steel hardline. 3 GC Extreme 450 1/2" Deuce valves, 2 up front and one in rear. Stainless steel 'Swagelok' fittings. Energy Suspension front bushings. Downey Off-Road rear disc brake conversion, Custom one-off 12" front disc conversion with Wilwood 4 piston forged and polished aluminium calipers. Stainless steel braided brake hoses, chrome steel brake lines. Wilwood brake proportioning valve. By No Limits Customs

Wheels

18" chrome Driv Kick wheels, 215/35/18" Dunlop FM901 tires

Stereo

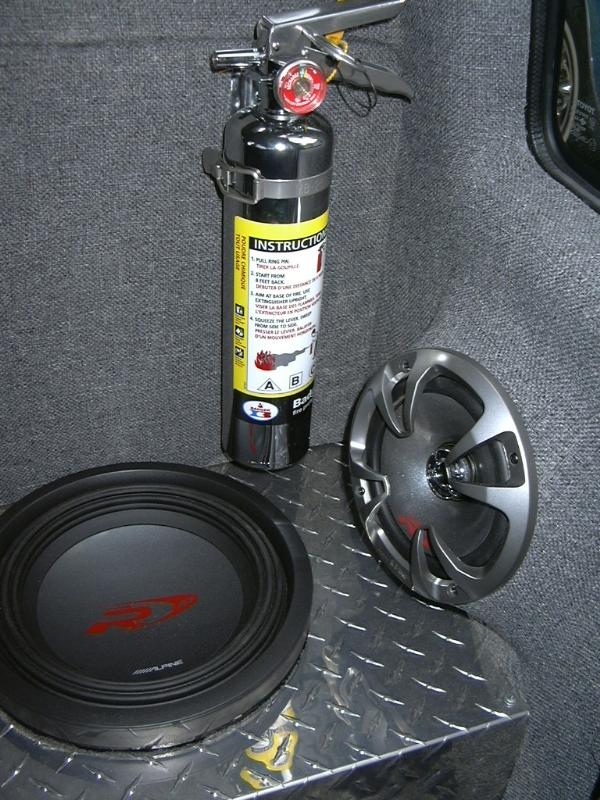

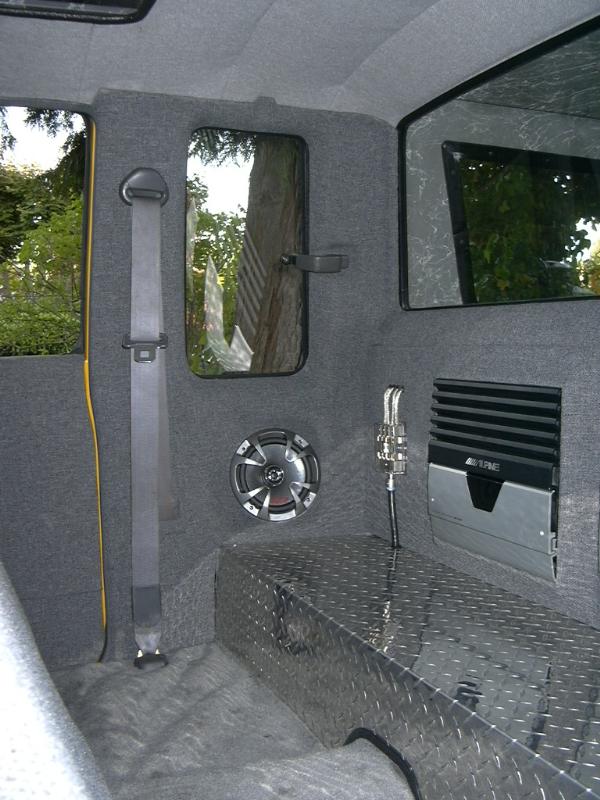

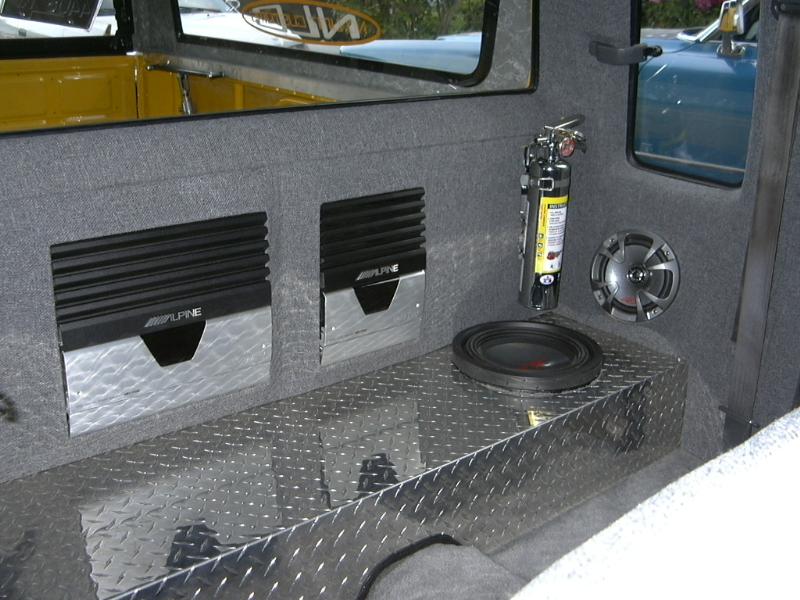

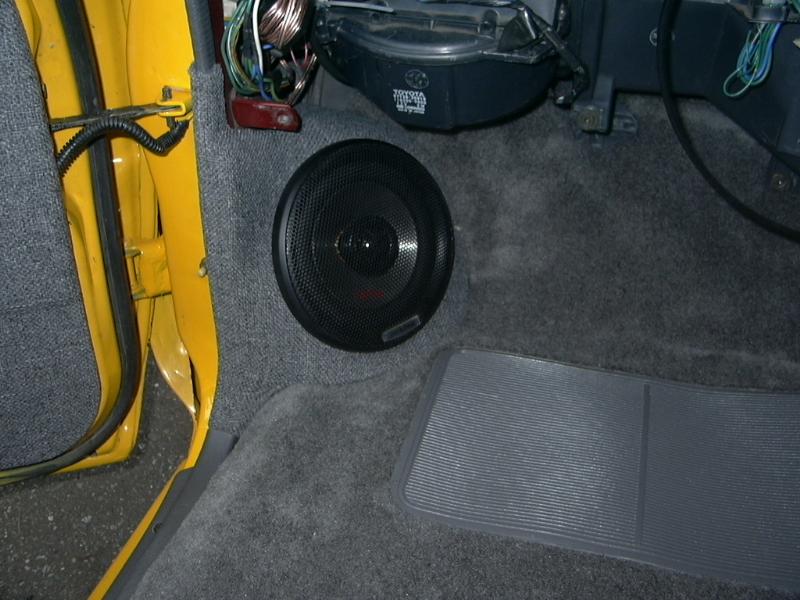

JVC head unit, Alpine V12 MRV-F340 amp for mids and Alpine V12 MRD-M300 amp for Alpine Type R 1042D 10" Sub . Alpine 'Type-R' component mids in kick pods, 6.5" Alpine Type R Coaxial Mids in rear side panels.

Awards

***FOR SALE***
Featured in August 2009 Minitruckin, First In Class and Outstanding Radical Custom at World Of Wheels Vancouver 2011, Best of Show Truck at Drop Zone 2008, Best of Show Truck and Minitruckin Editors choice award at Summer Slam 2008,
1st place Minitruck, and best Air suspension at Rollerz Only Car show, 2007
3rd Place Import Minitruck Wild @ Sittin Pretti' Summer Slam '06 and Ten Magazine Editiors Choice award.
1st Place "Open bed minitruck Wild" and "Best Engine" at Drop Zone 2005 (without box and canopy on truck),
1st place Full custom Minitruck, and "Best Air Suspension" at Untiy CC Car Show
Kinda cool: http://www.lcengineering.com/newsletter/index.php?p=view&id=74

Future Plans

***FOR SALE***
Show it, Drive it, enjoy it. Then work on my 61 Caddy.

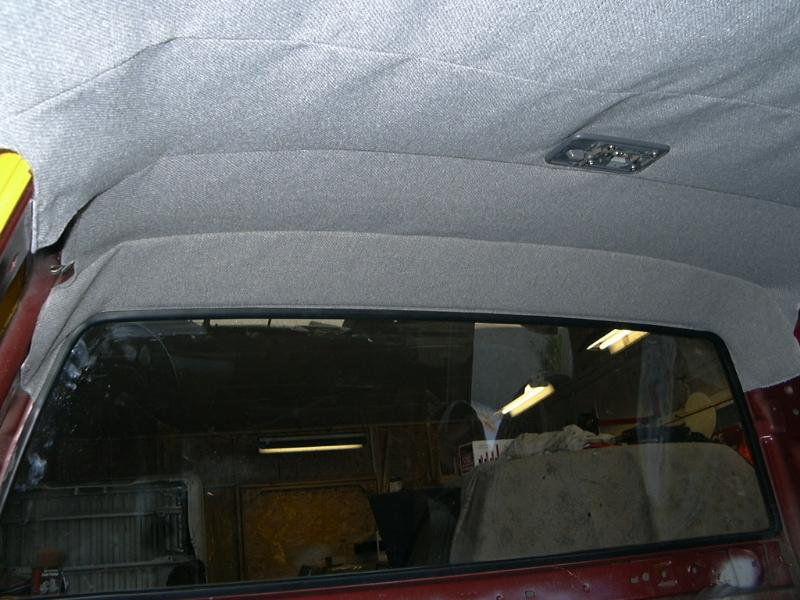

Special thanx to: My wife Jodie. Scott at Wicked Performance for the paint work, Brad at Sublime Artistry for laying out the flames, GC Valves for the air suspension valves, Dan at D-Side creations for stitching the seats, headliner and visors. Brad, Ryan C, Ryan M, Darren O., Jordan, Douglass Chassis for use of the shop equipment. Harold at WV.
