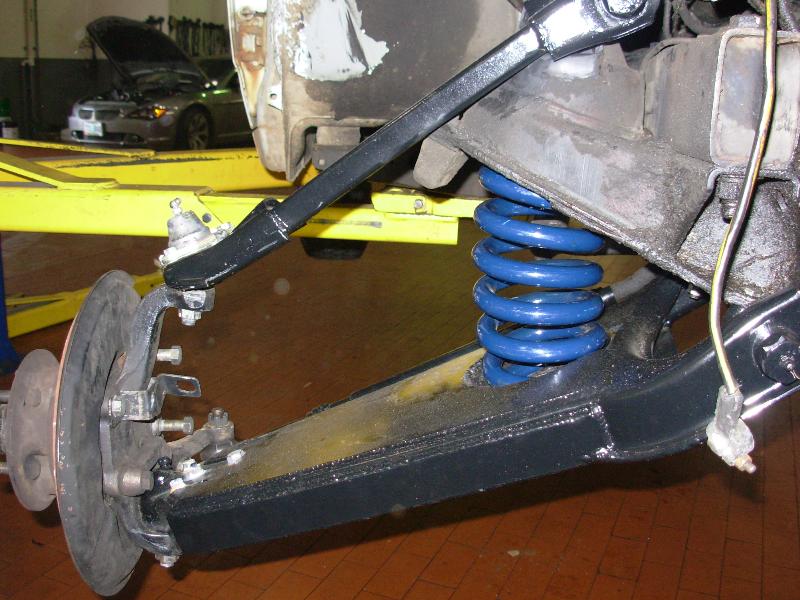

im poor so i had to use what i had. total cost of arms is 30bucks for two balljoints. haha
2009-04-12

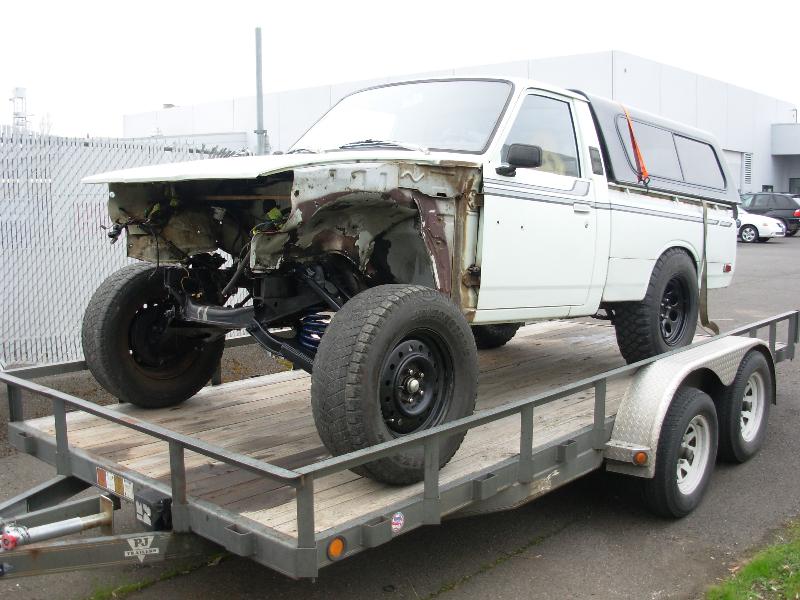

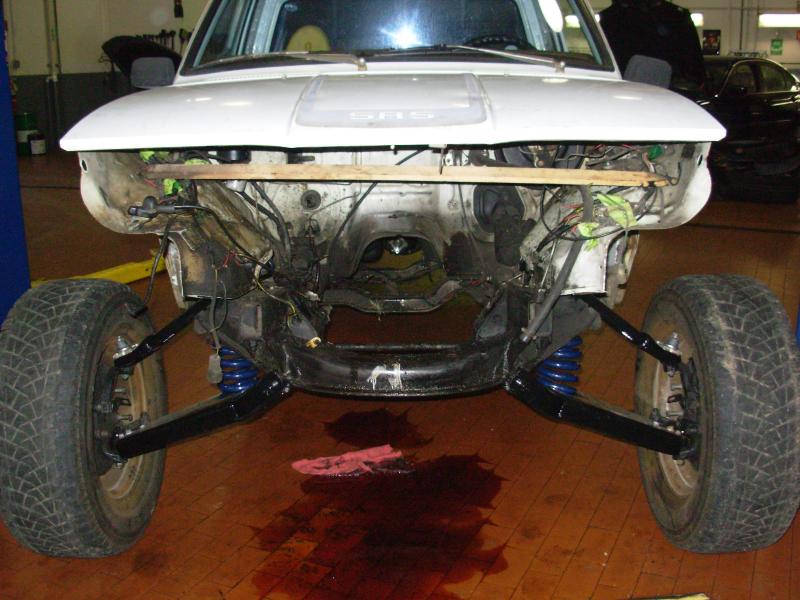

wide son of a gun. i havent measured the travel but its going to be feet! not inches.kinda looks like its bleedin!haha
2009-04-12

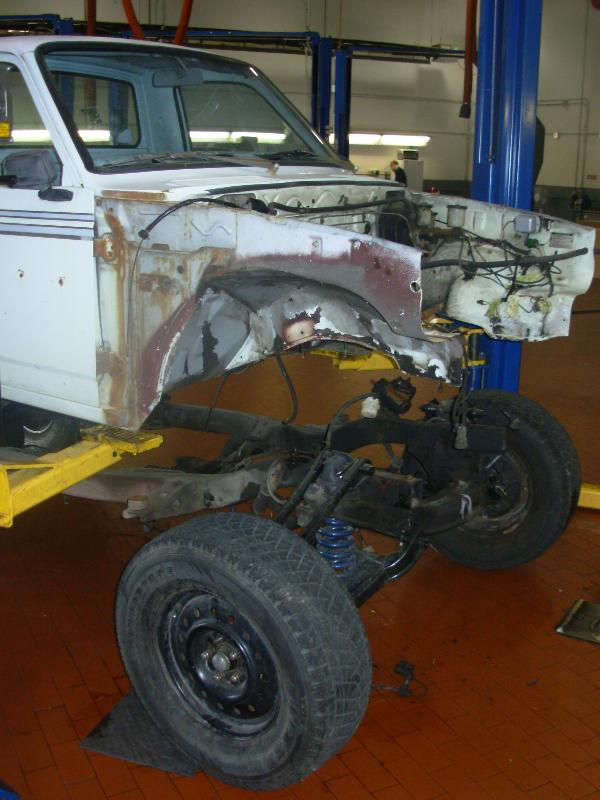

nose a little high!
2009-04-12

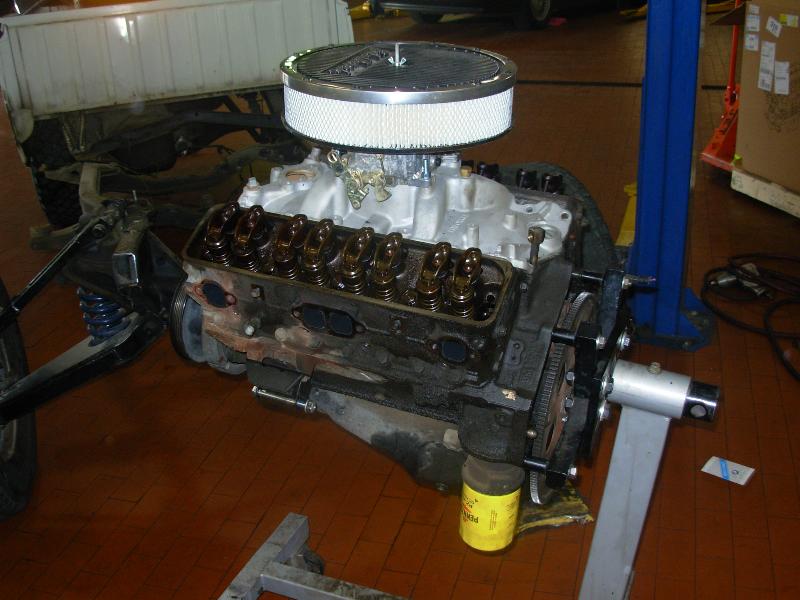

5.7l dirty chevrolet with a modified edelbrock dual plane manifold
2009-10-18

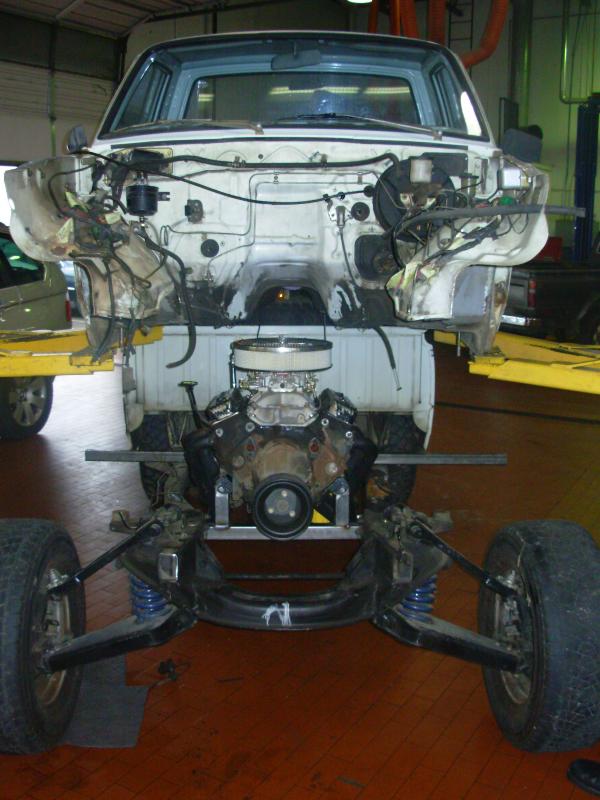

cab coming off for engine and firewall mods.
2009-10-18

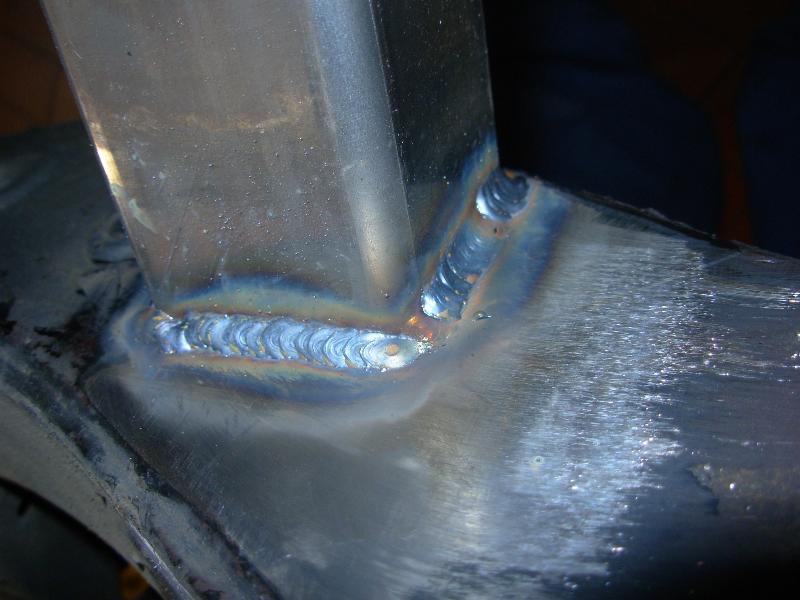

some welds..
2009-10-18

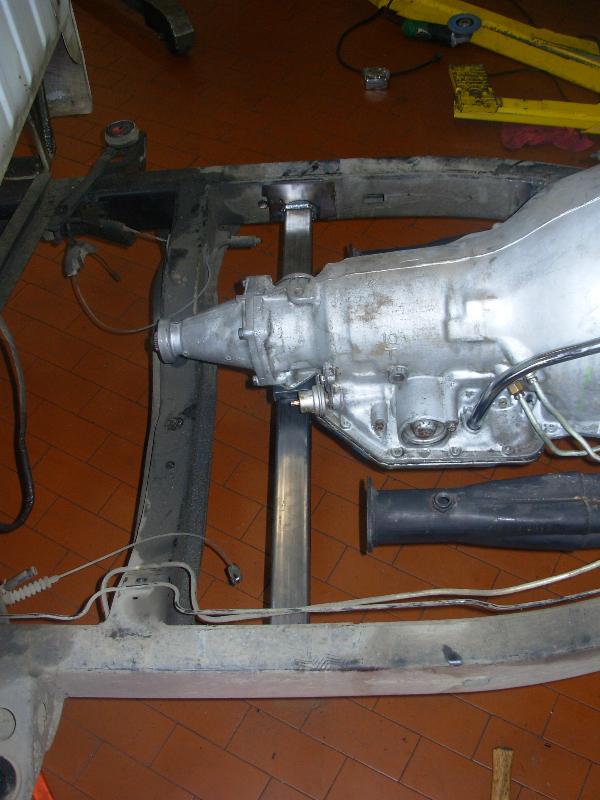

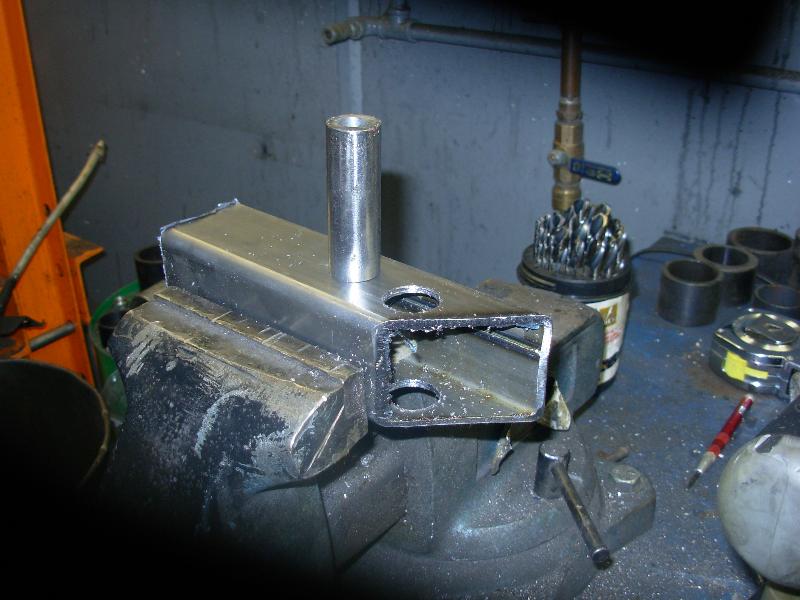

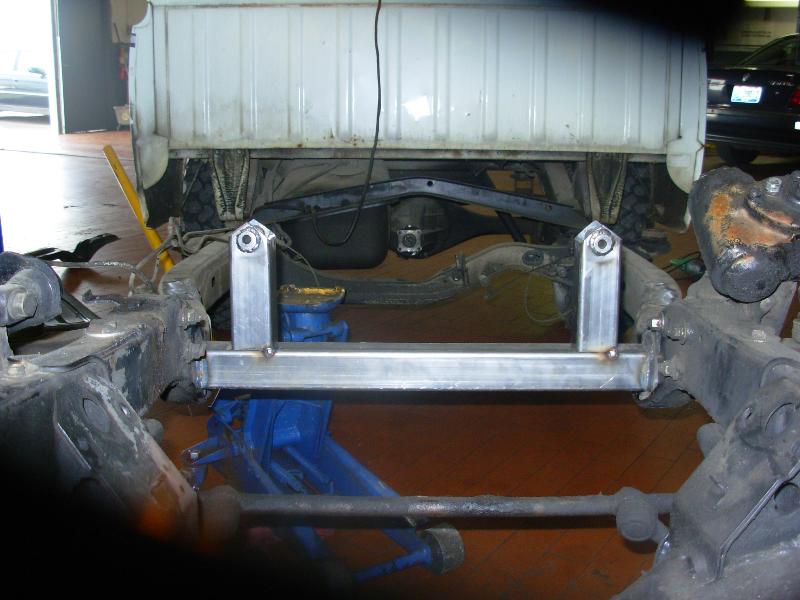

fabbing engine mount.
2009-10-18
all tacked into place.. will have more gussets later.
2009-10-18

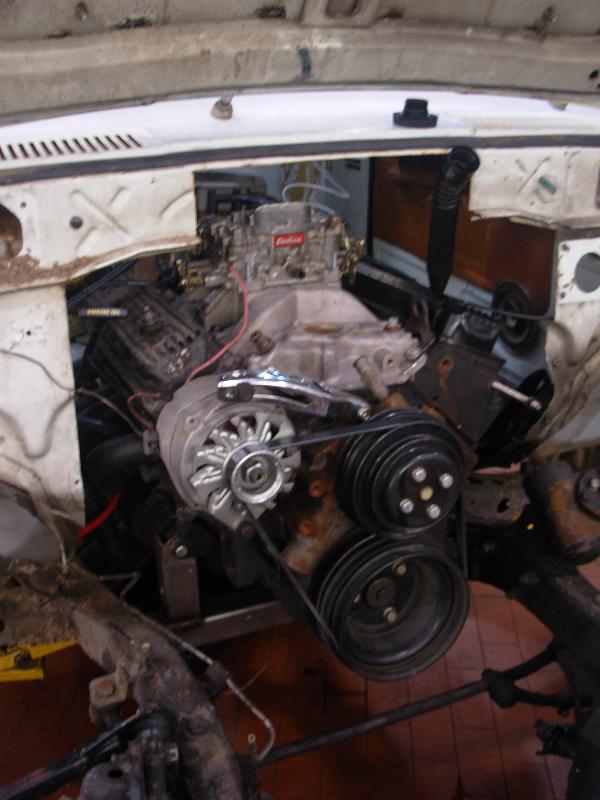

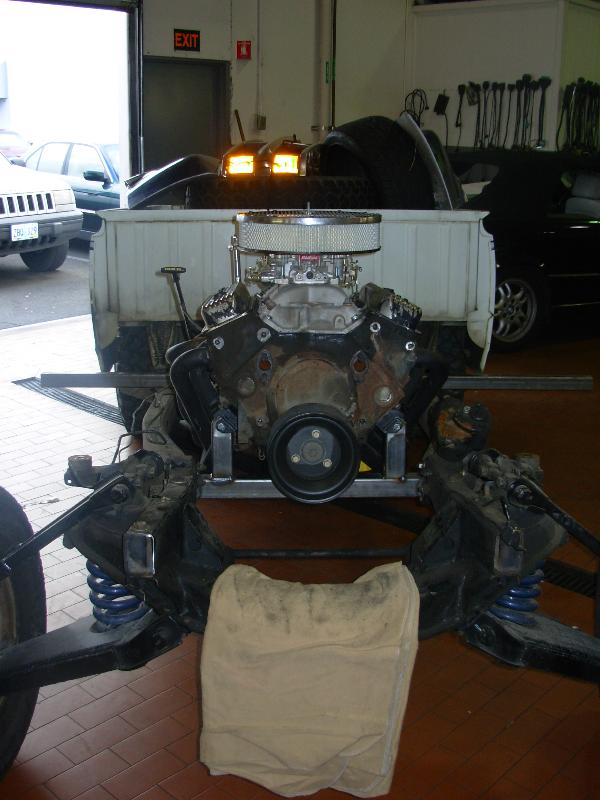

engine installed.
2009-10-18

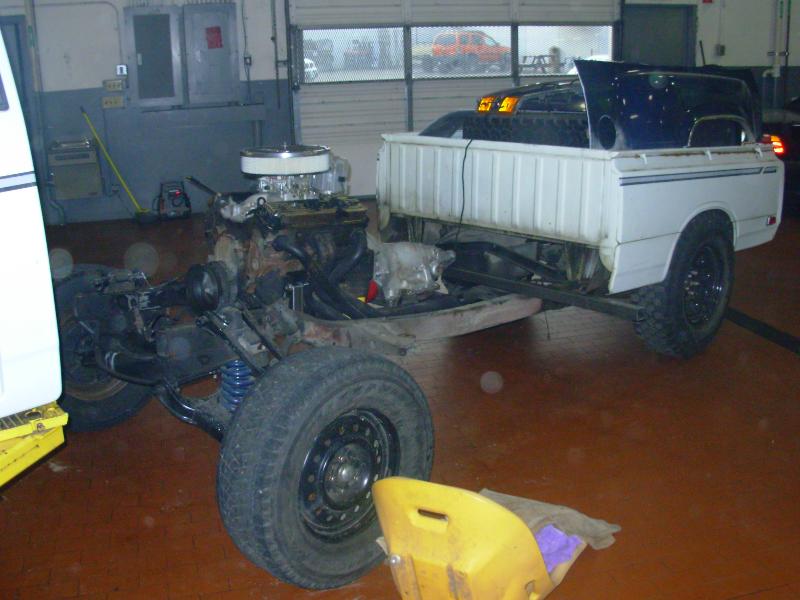

transmission and engine above lowest points for complete front to back skidplate.
2009-10-18

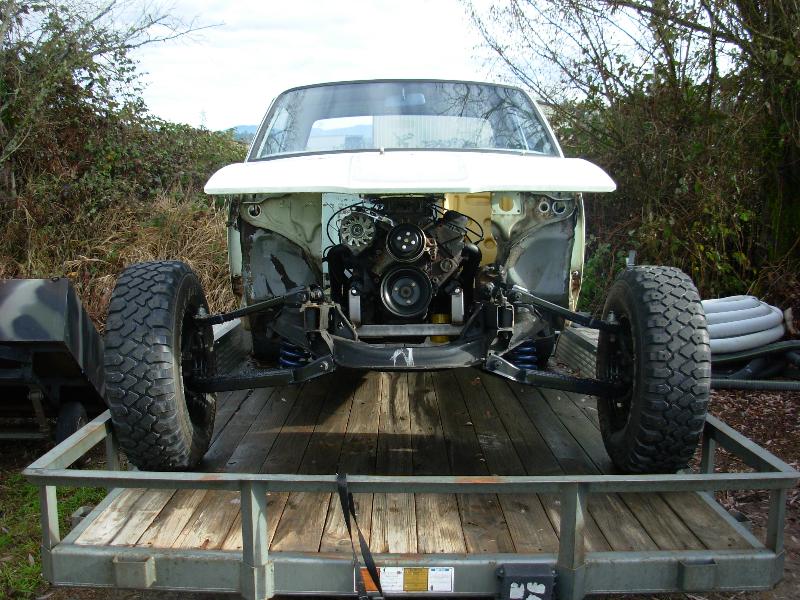

MODIFIED COILS AFTER ENGINE INSTALL TO ADJUST RIDE HEIGHT
2009-12-20

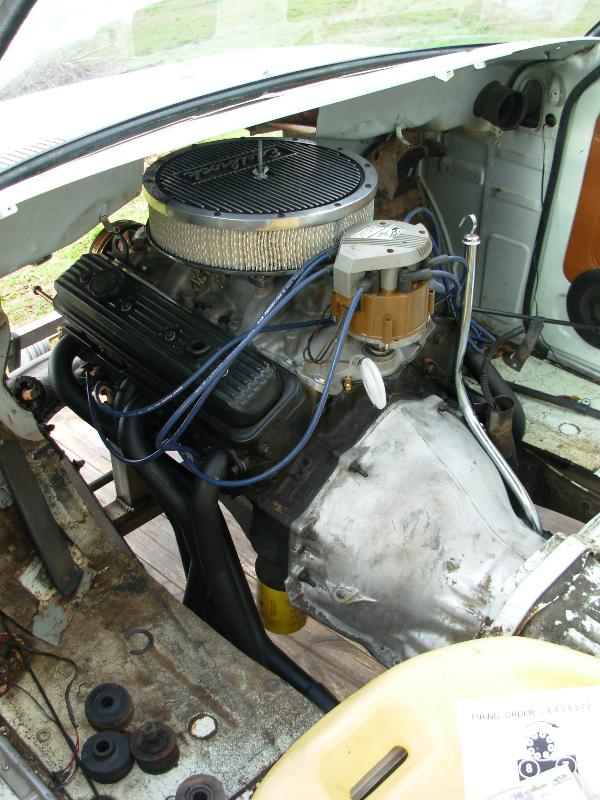

CLEAN ORIGINAL INTERIOR HHEHEHHE NEW HEI DIST AND TALOR WIRES.
2009-12-20
like i said no one makes glass so i had to make a front clip myself not much left of the old chevy!
2010-03-01

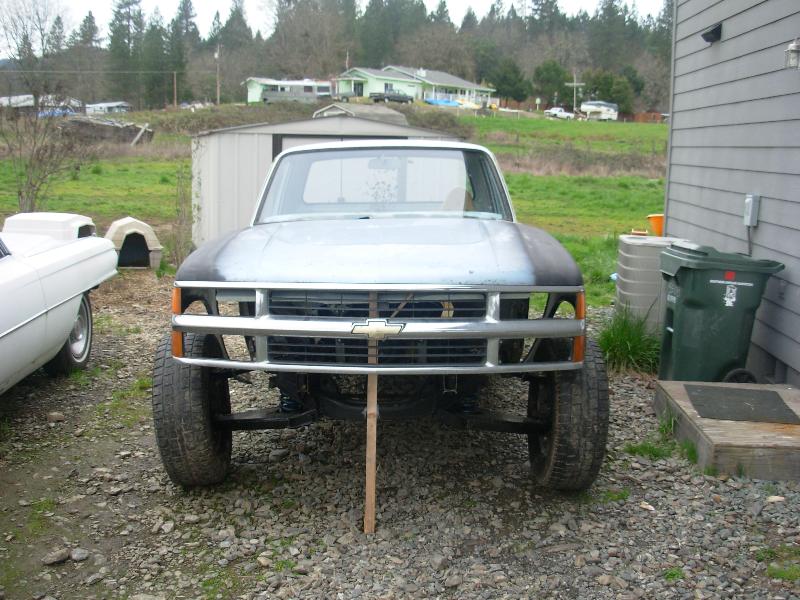

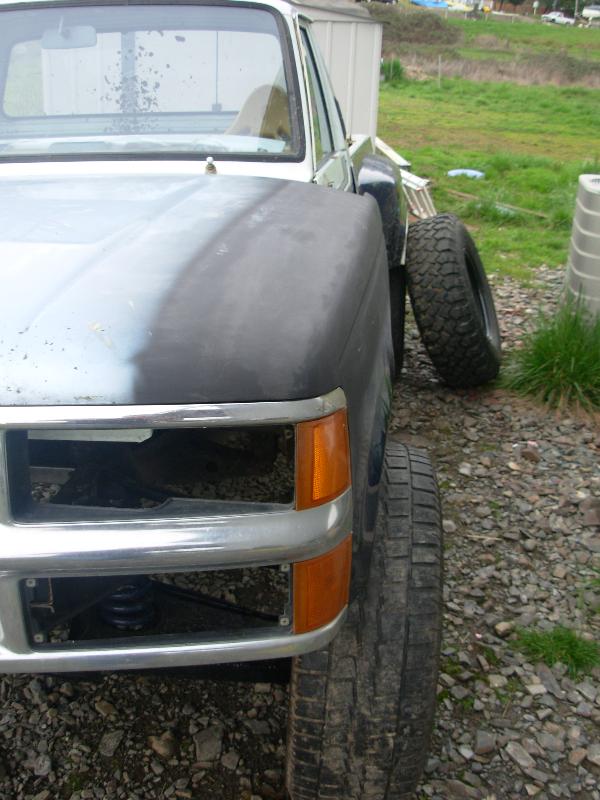

full width chevy front end and its still not wide enough!hahah
2010-03-01

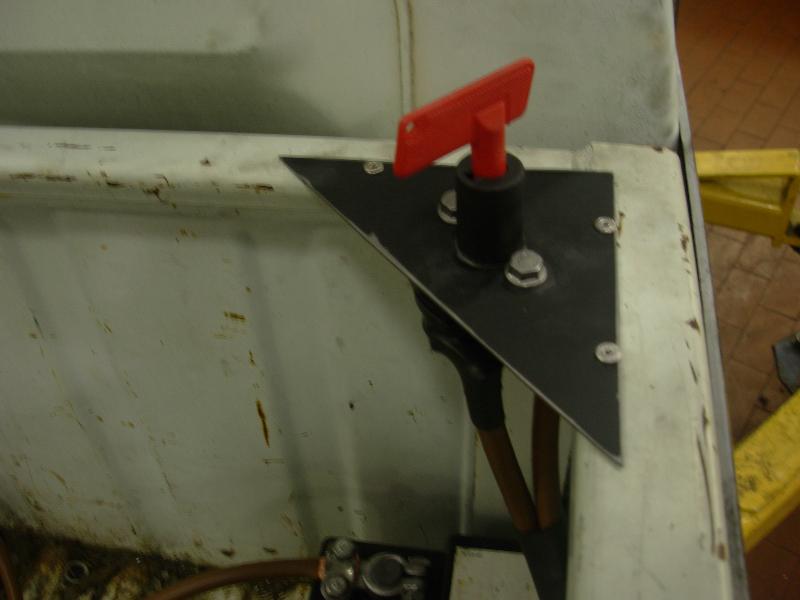

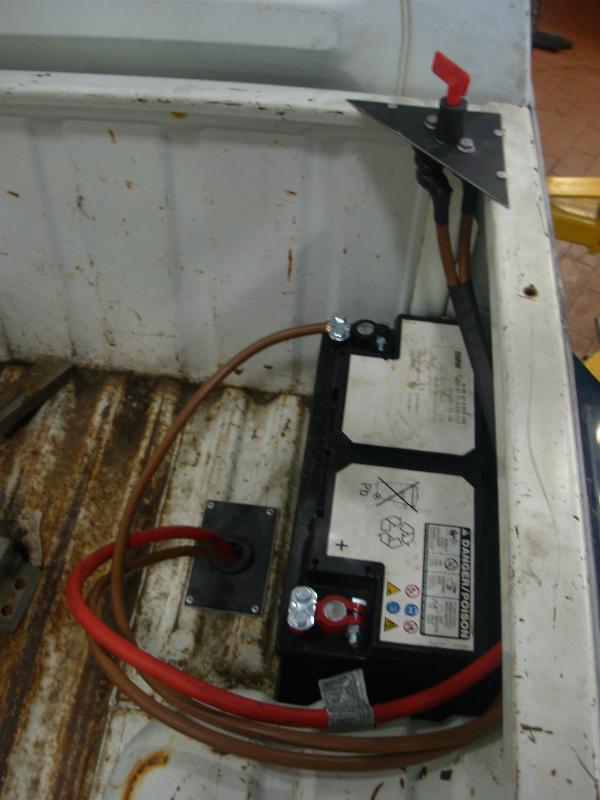

fabbed up plate for bmw battery disconnect .
2010-03-06
engine one fuel pump and a couple wires from screaming.
2010-03-06

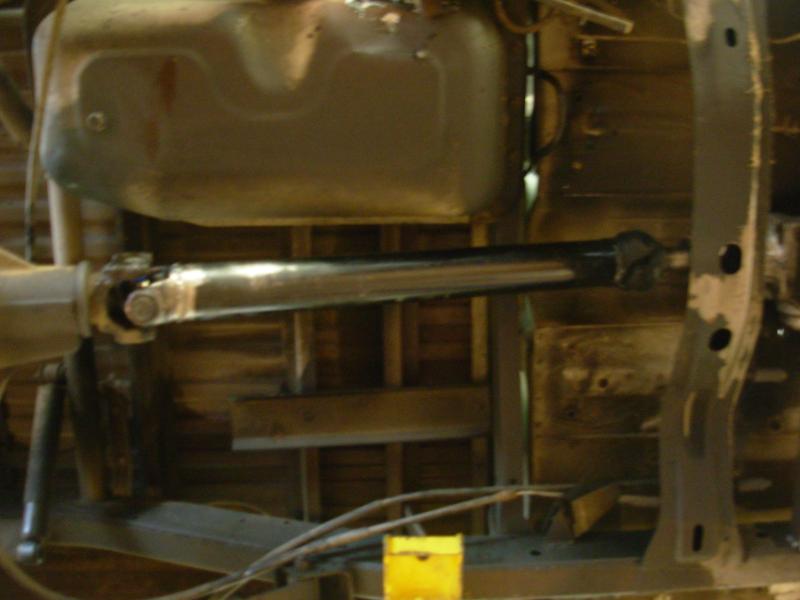

one short driveshaft! took 2 feet off of a factory chevy shaft.
2010-03-06

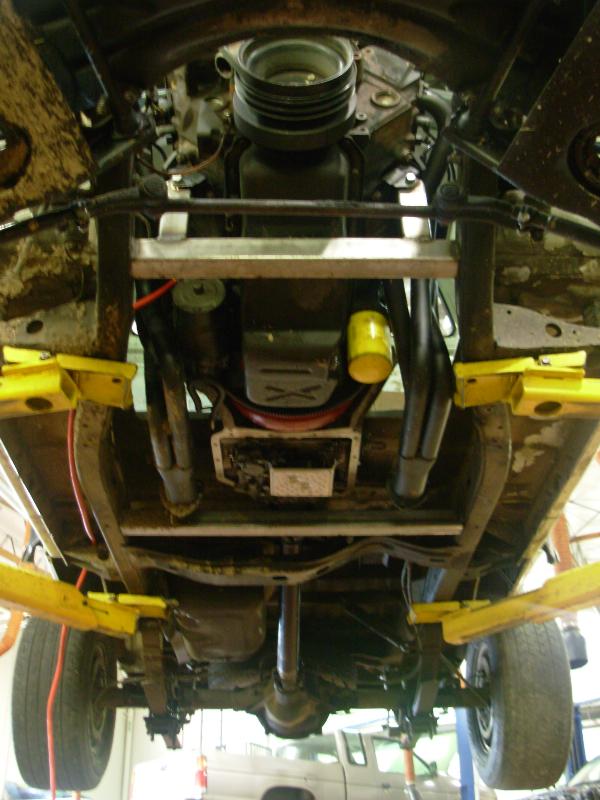

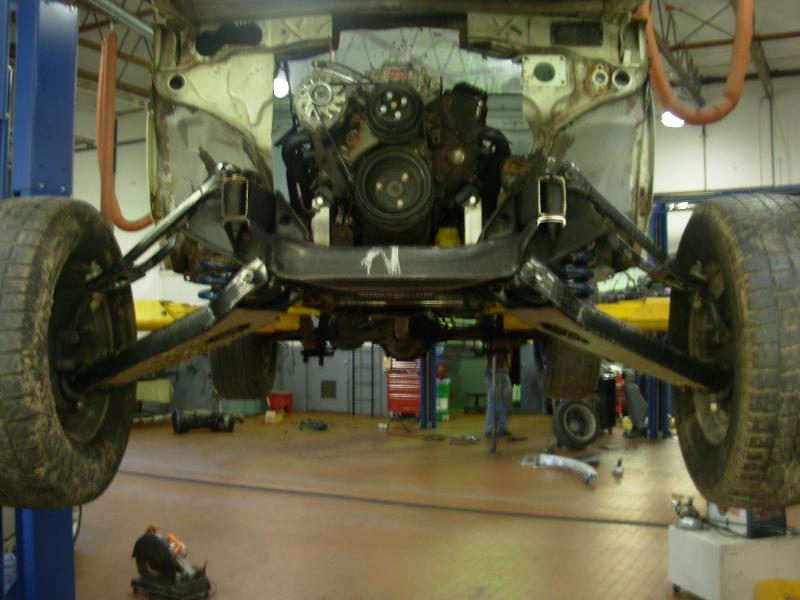

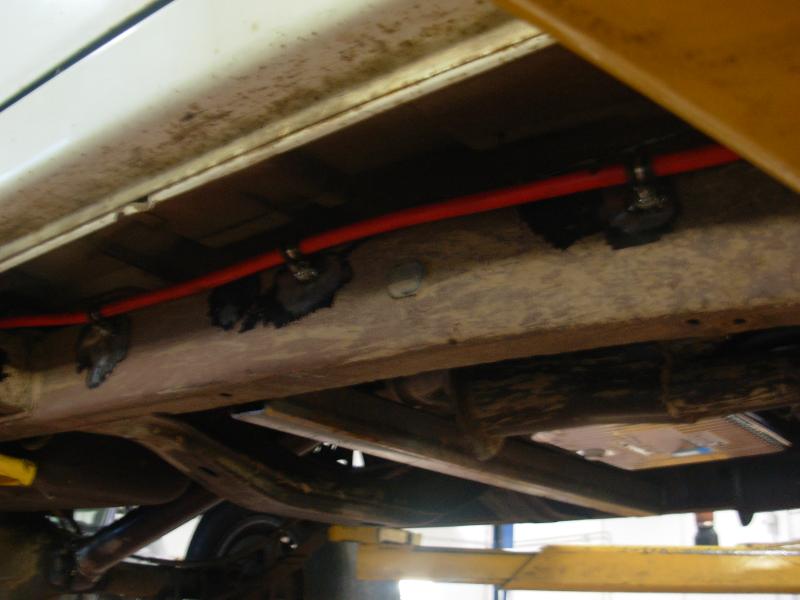

cool underside pic.
2010-03-06
this is where the battery will be mounted.
2010-03-06
welded 6mm bolts to side of fame for battery cable mounts.
2010-03-06

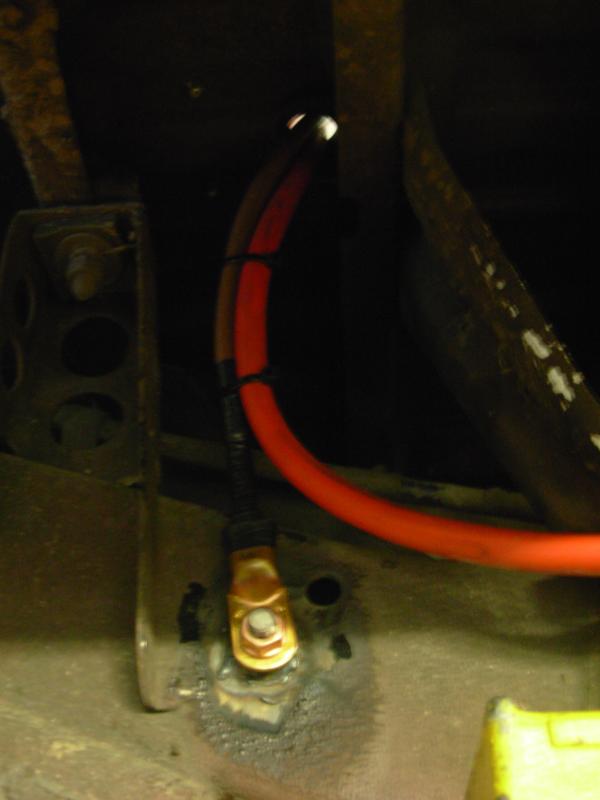

ground strap terminal welded to frame.
2010-03-06
cool full droop pic just need to mount shocks and limit straps.
2010-03-06

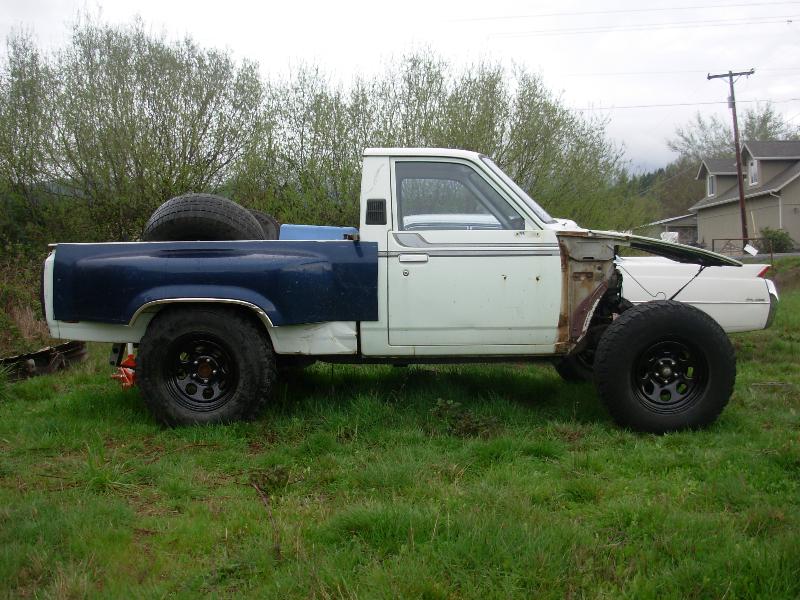

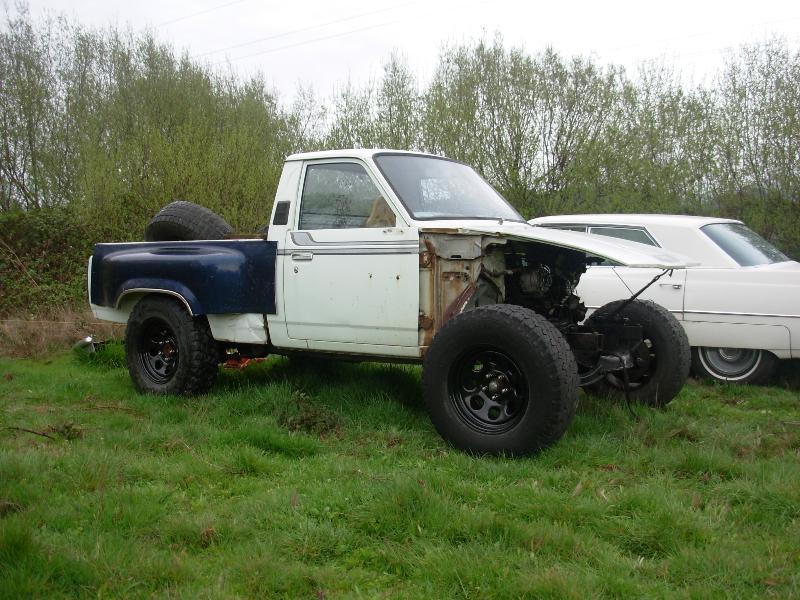

side view with new/used tires. will mount front clip this weekend.
2010-03-25
new wheels, use your imagination on the rear glass.
2010-03-25

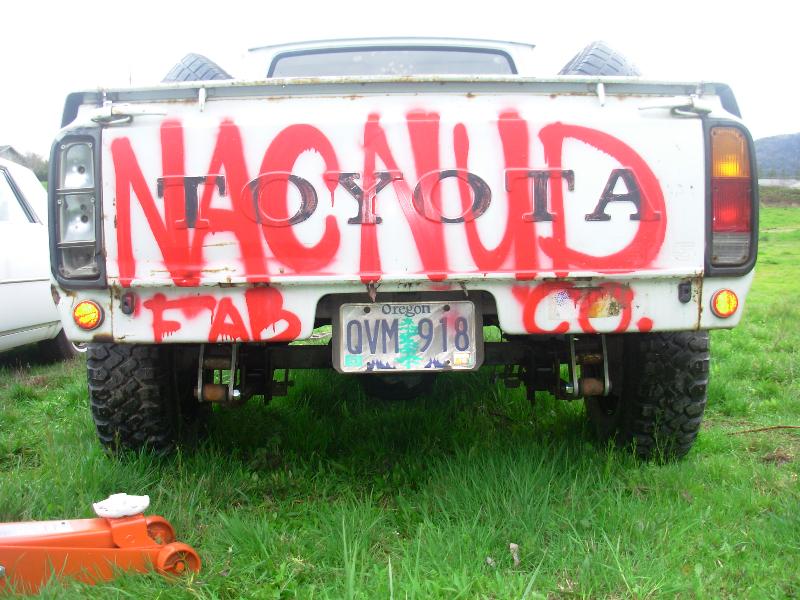

rear view with wheels,tires and shackles.
2010-03-25

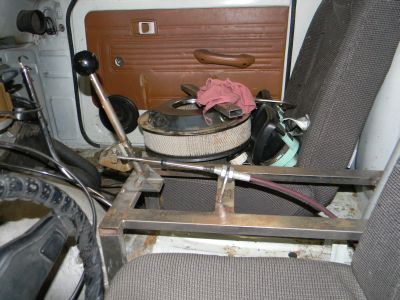

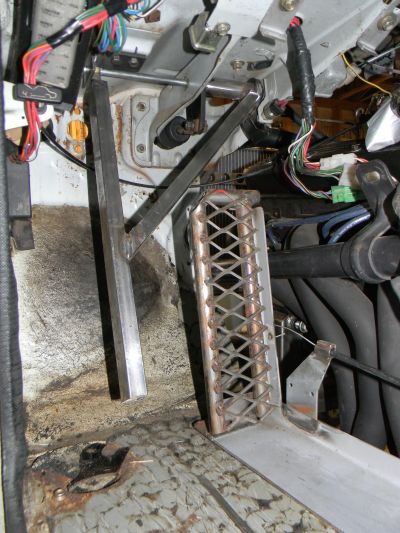

drivers side view of gas pedal and offset brake lever
2011-12-11

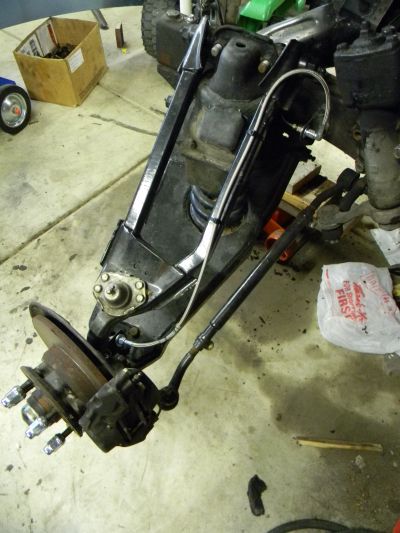

front arms with earls extended stainless lines
2011-12-11

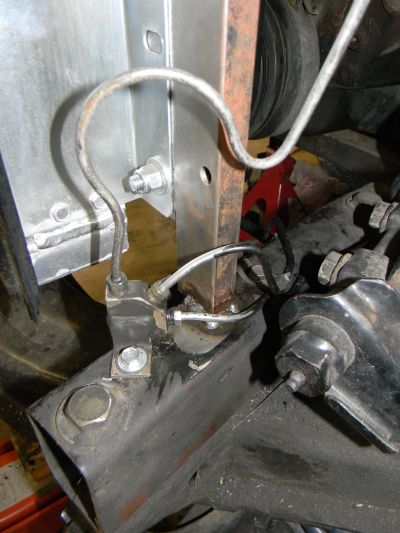

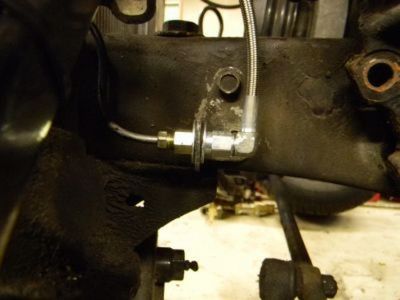

used factory brake line mounts with rubber and washers.
2011-12-11

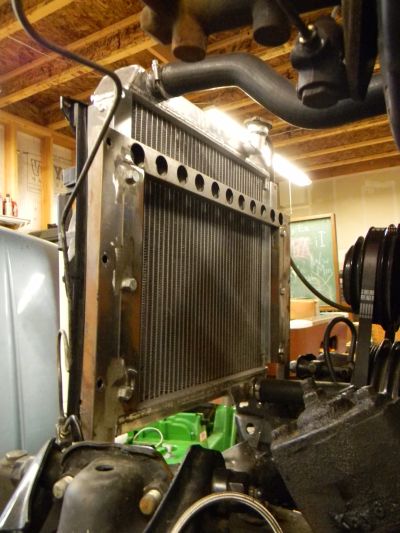

front radiator core support with china alloy radiator.
2011-12-11

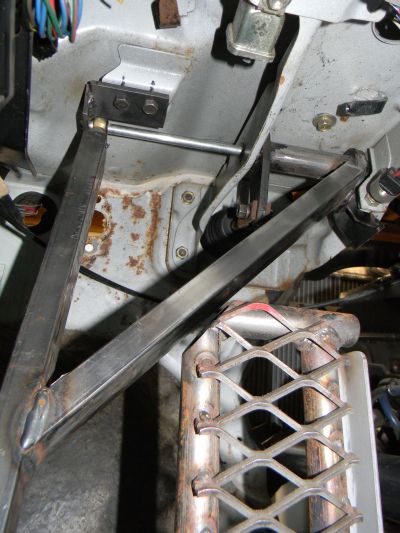

another view of pivot for offset brake pedal will gusset for strength
2011-12-11

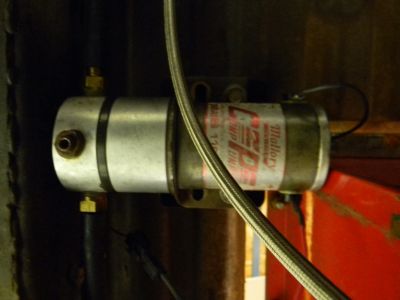

mallory radial fuel pump
2011-12-11

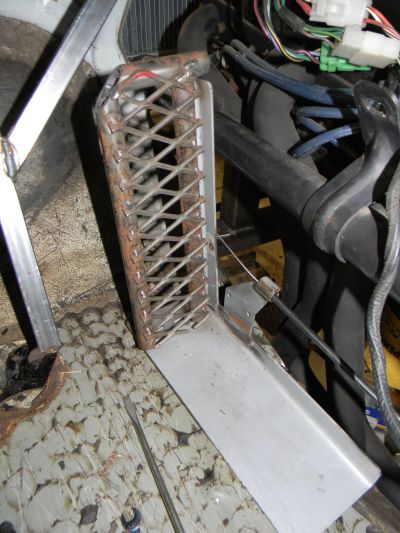

fabbed up gas pedal
2011-12-11
start of dog house/center console
2011-12-11

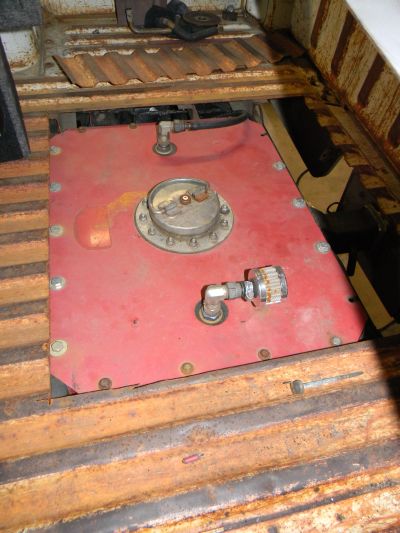

fuel cell mounted and plumbed
2011-12-11
had to shorten and remount distribution block
2011-12-11

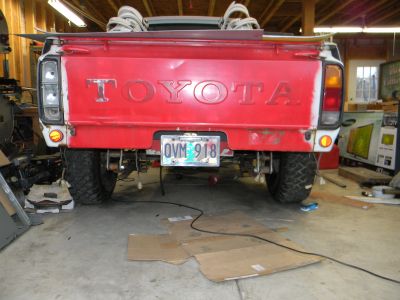

welded in rear hitch receiver and made a removable licence plate bracket.
2011-12-11

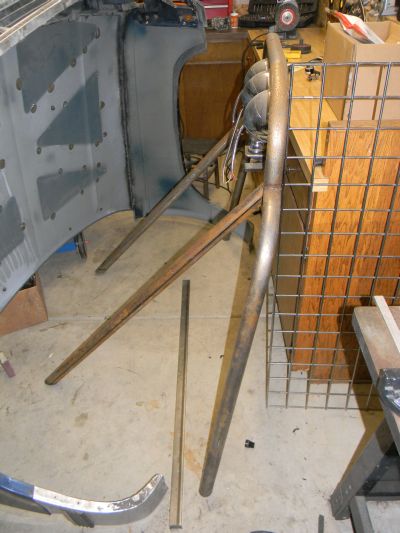

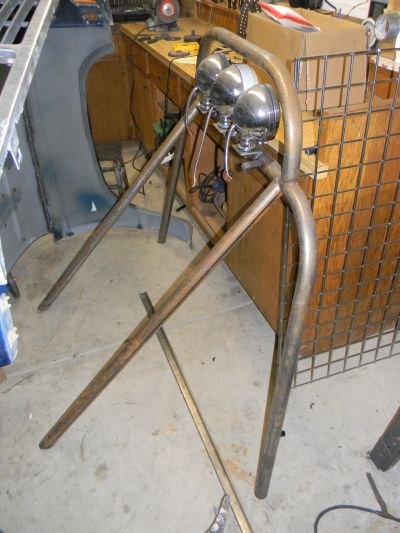

start of roll bar will attach to frame and in cab roll cage later
2011-12-11
another pic of roll bar. used ebay bender and had surprising results
2011-12-11
cool pic of the cab going back on the frame
2011-12-11

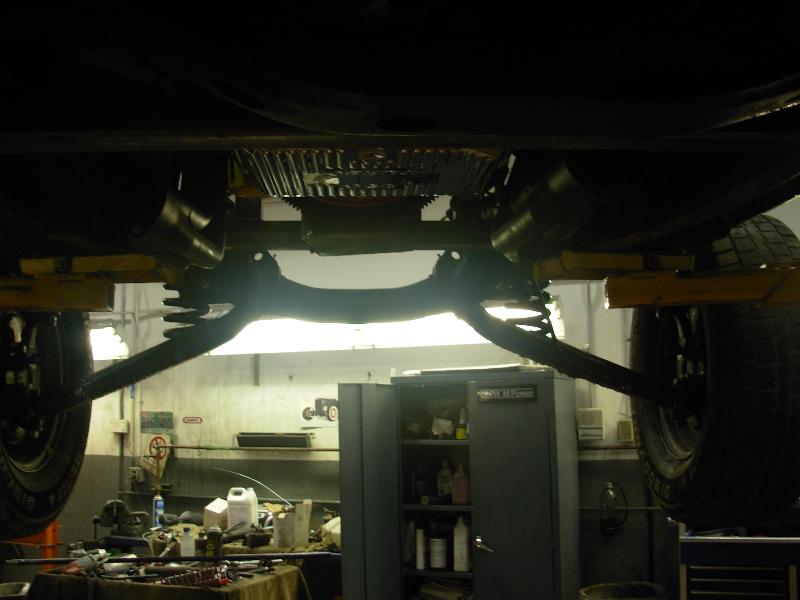

what the rear diff will see.
2011-12-11
start of the trimming
2011-12-11

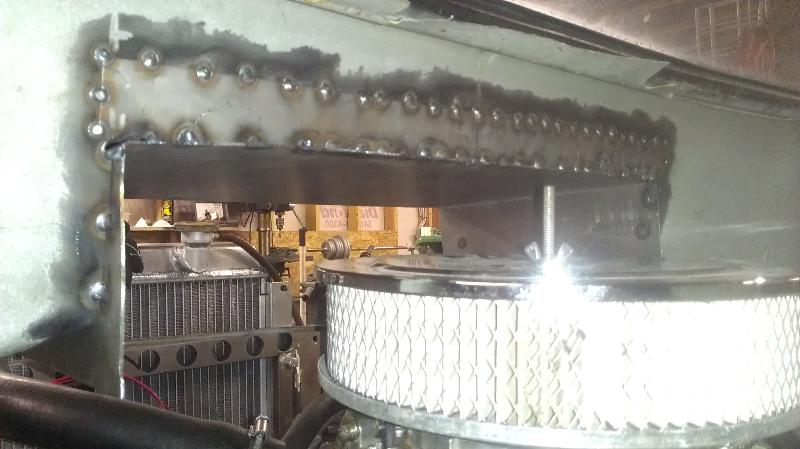

started building back in some structure
2012-03-03

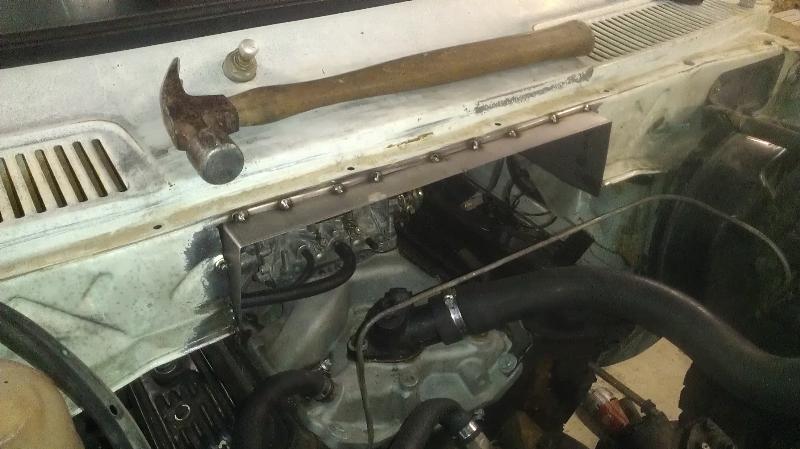

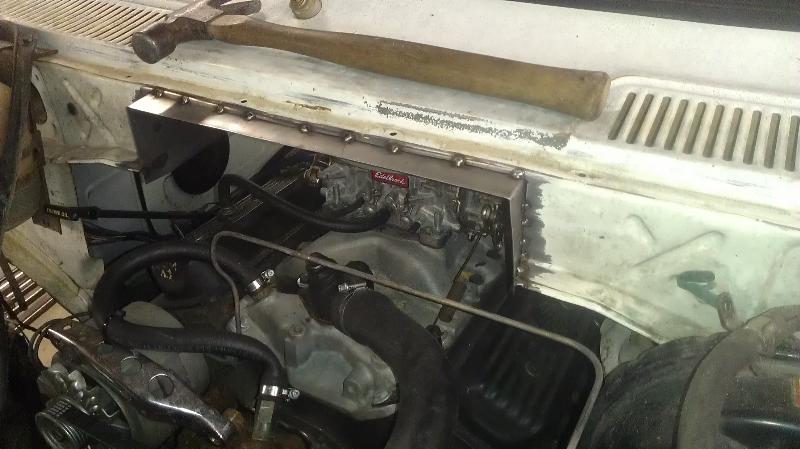

started sheetmetal
2012-03-03
2012-03-03
2012-03-03

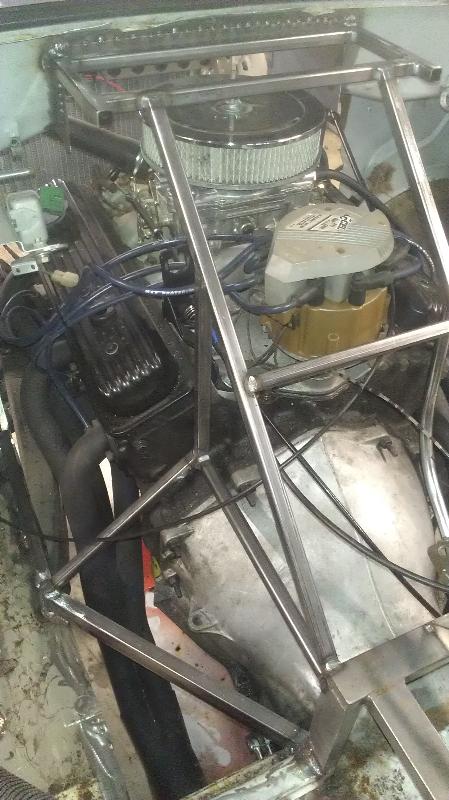

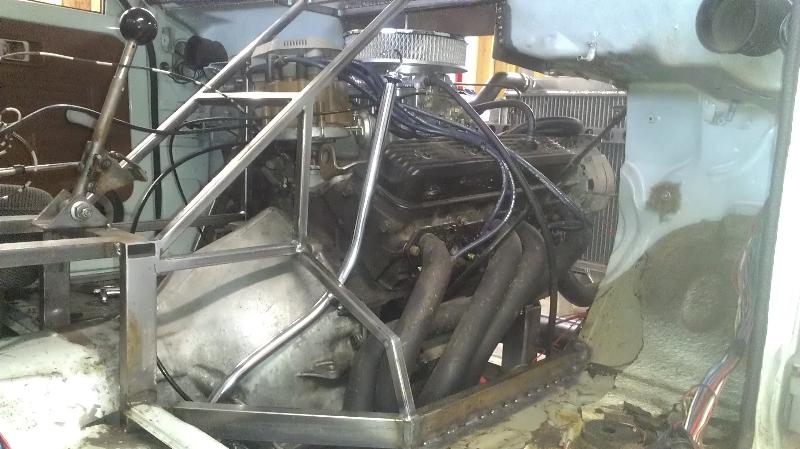

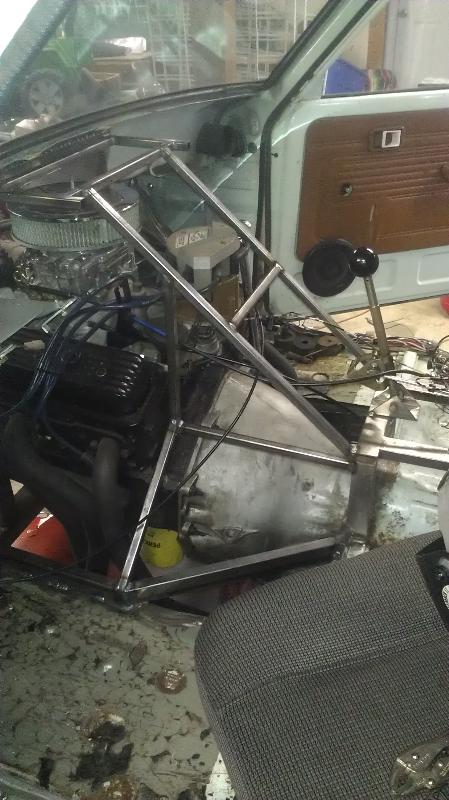

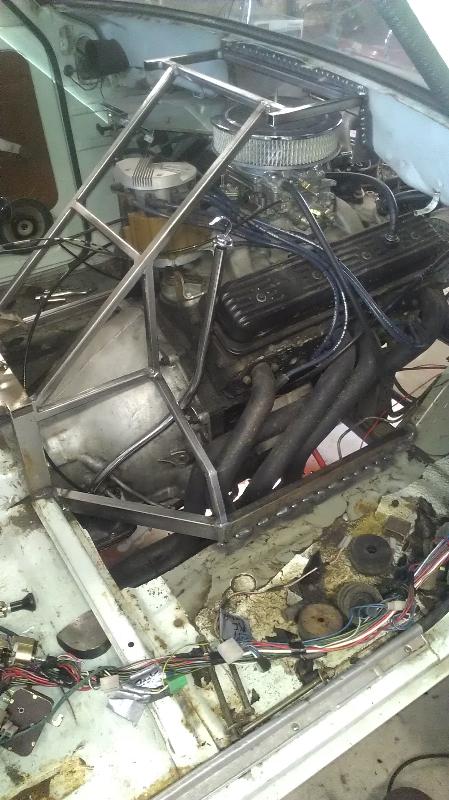

beginings of the center console/ doghouse
2012-03-03

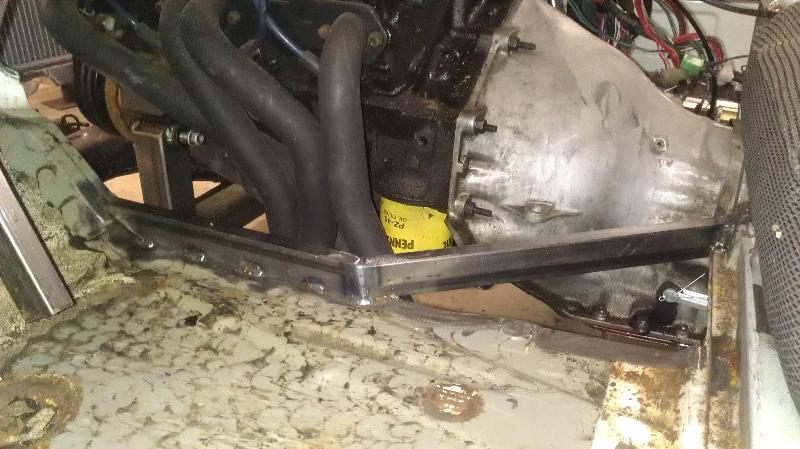

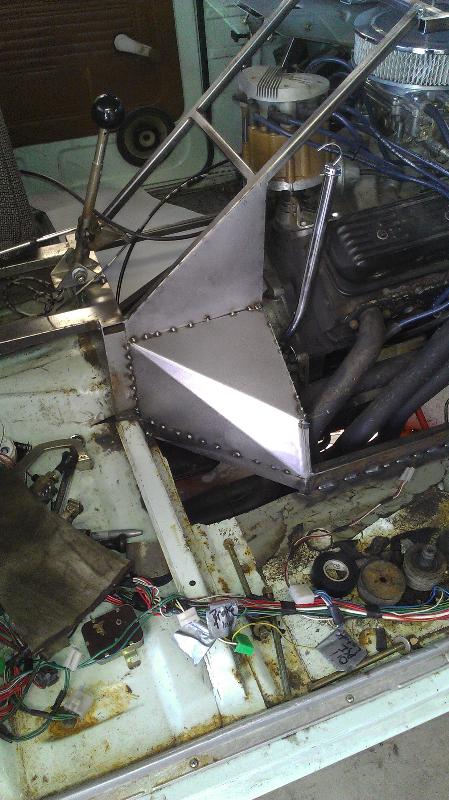

had to create some interesting angles due to lack of legroom
2012-03-03
2012-03-03
2012-03-03
now to the fun stuff! haha trying to figure how to mount several pannels to make them removable and sealed at the same time.
2012-03-03

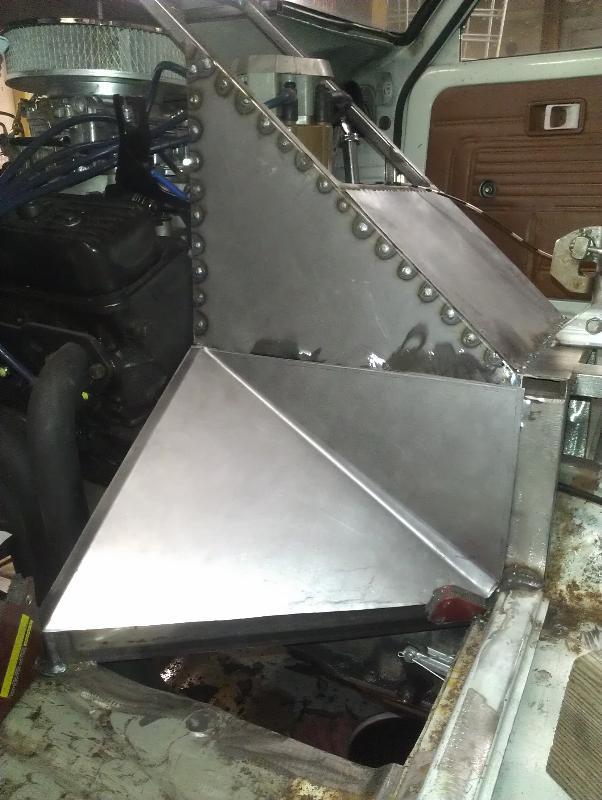

drivers side sheetmetal work
2012-03-06
