Photos

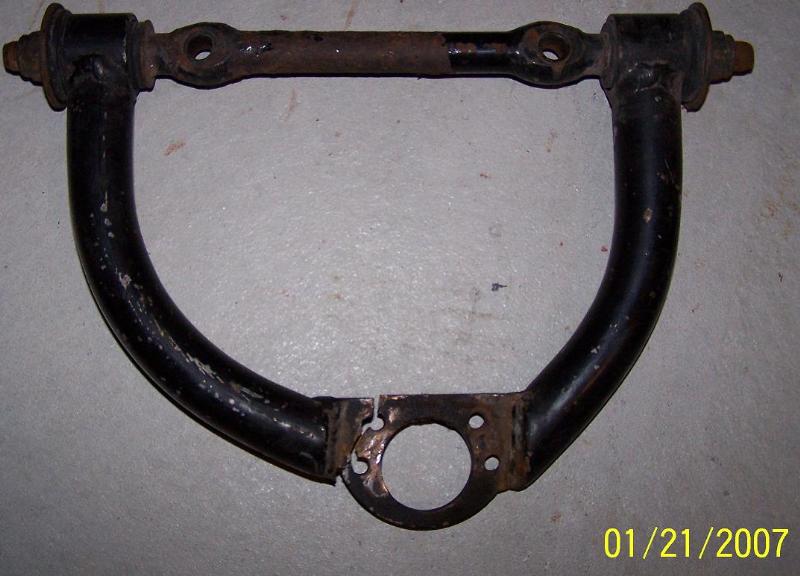

BYC arms that broke
2007-07-04
2007-07-04

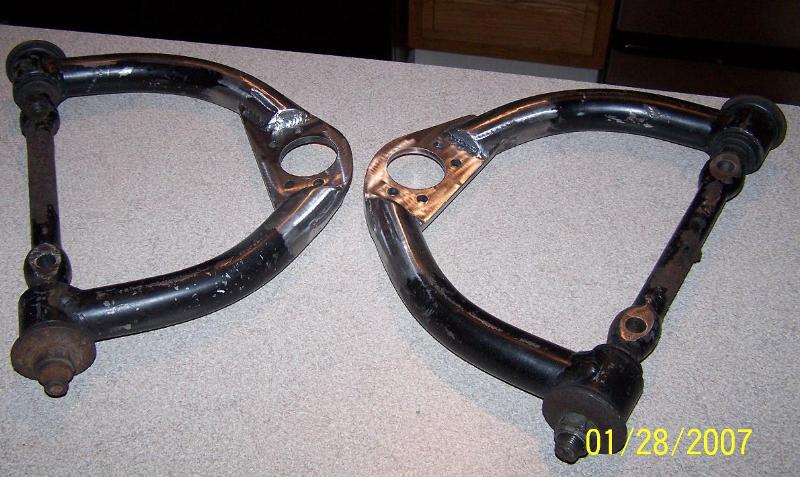

New ball joint plate sleeved into the tube
2007-07-04

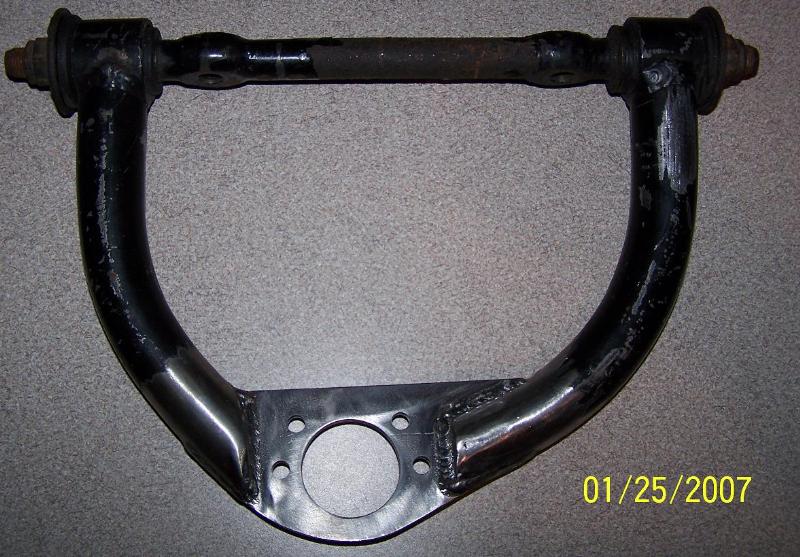

Repaired and ready to go back to the customer
2007-07-04

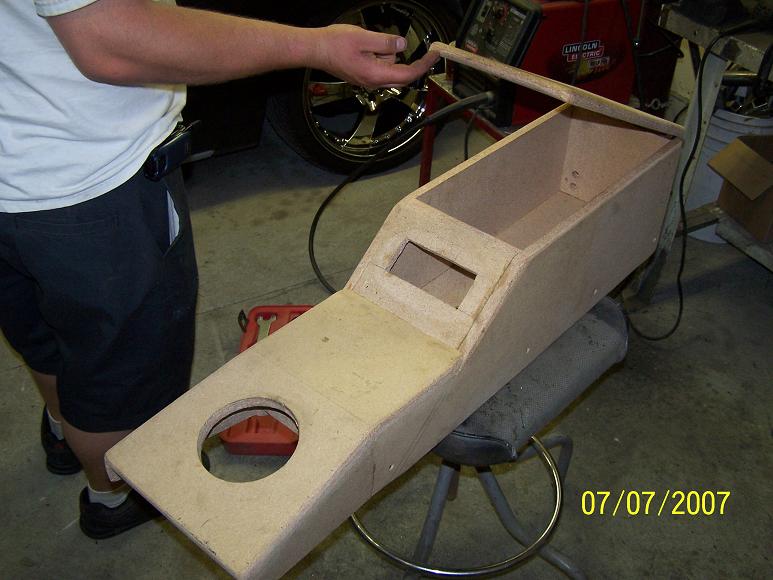

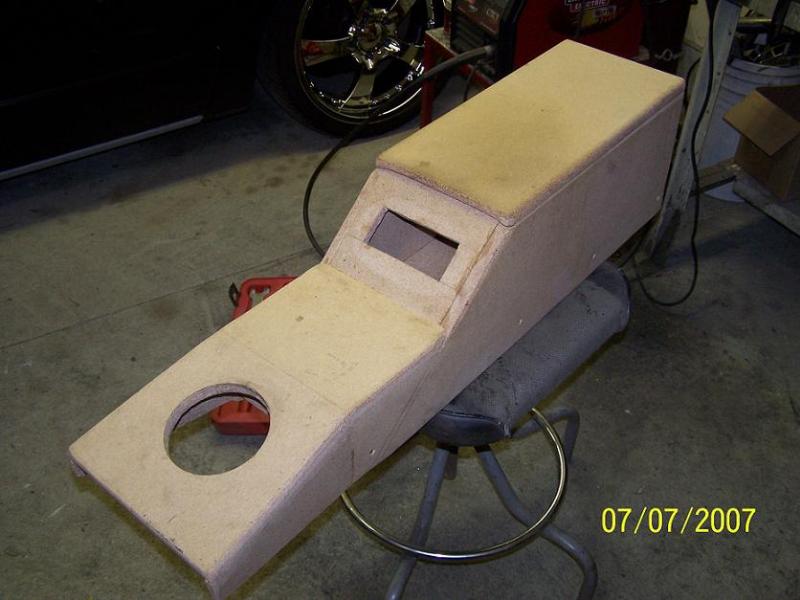

Before
2007-07-13
Before
2007-07-13

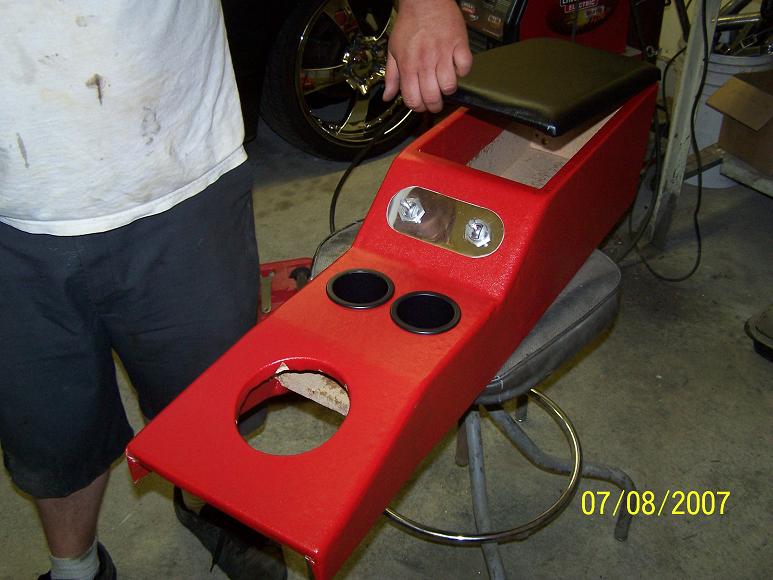

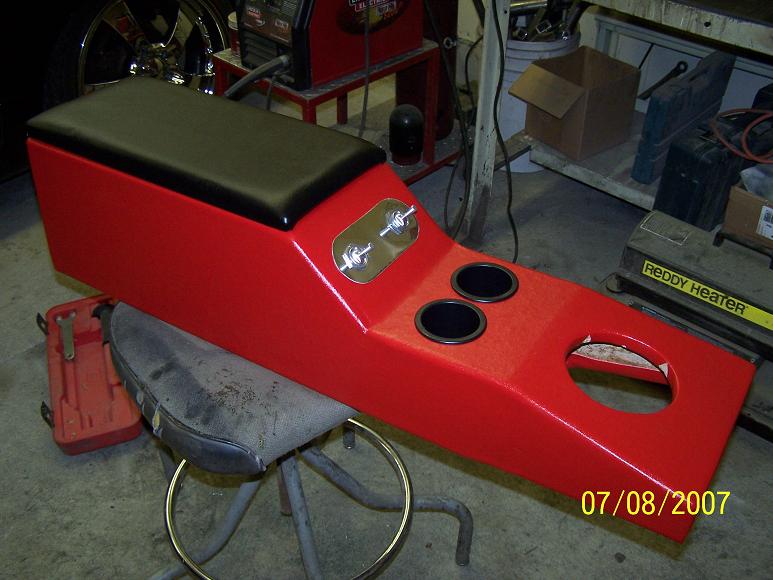

After
2007-07-13
After
2007-07-13

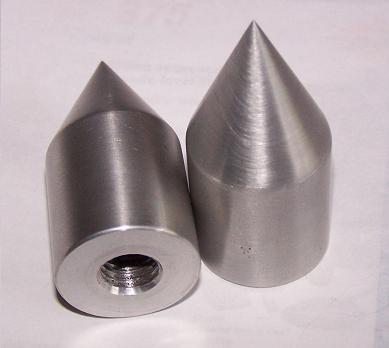

Threaded aluminum spikes I machined for the upper bag cup. They screw on to the threaded rod that comes though the top of the frame.
2008-05-28
Suspension

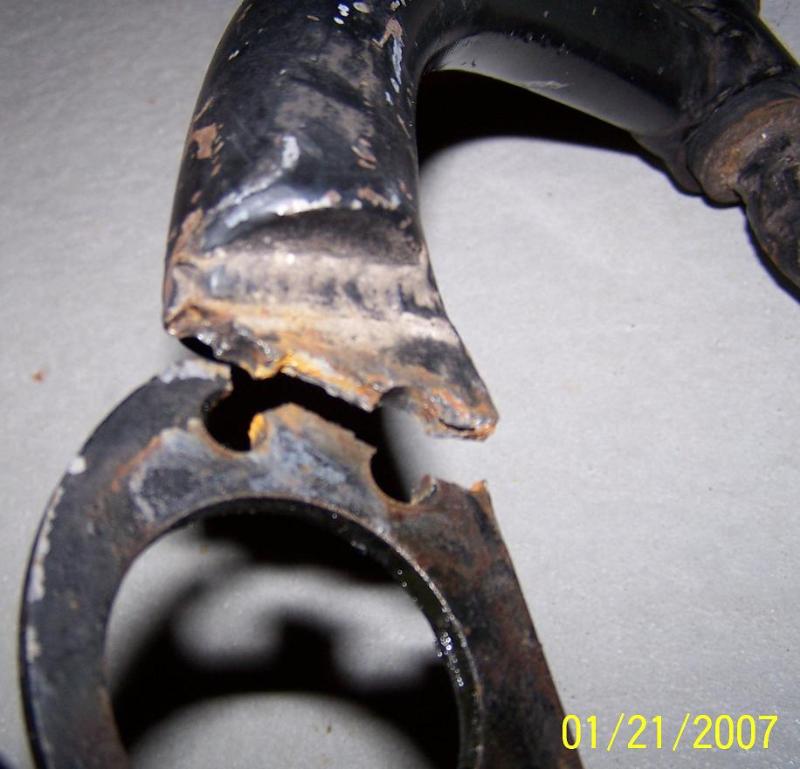

BYC arms that broke because the 3/16" balljoint plate was butt welded in between the 2 tubes allowing it to twist. I cut out the bad plate and made one out of 1/4" plate and sleeved it into the tubes about and inch on each side.
