Shot of the stock frame, going to fill in and smoothe out the stock overlap....ugly
2006-08-06

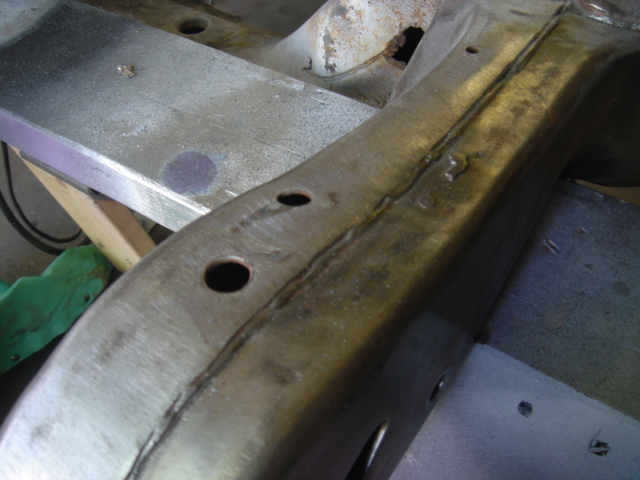

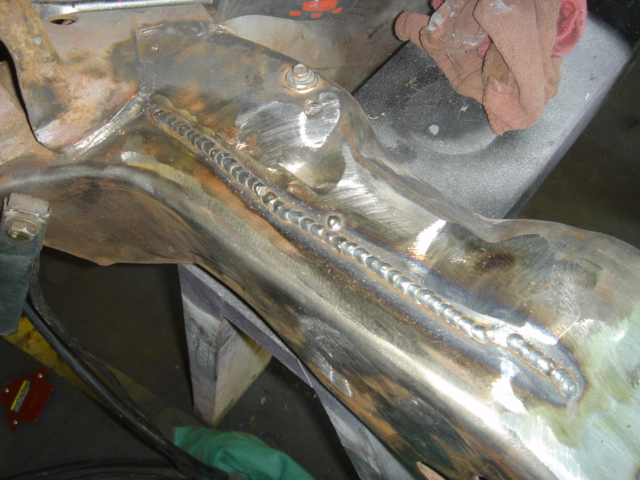

some weld, had to end up doing 2 passes, then a few other spots...
2006-08-06

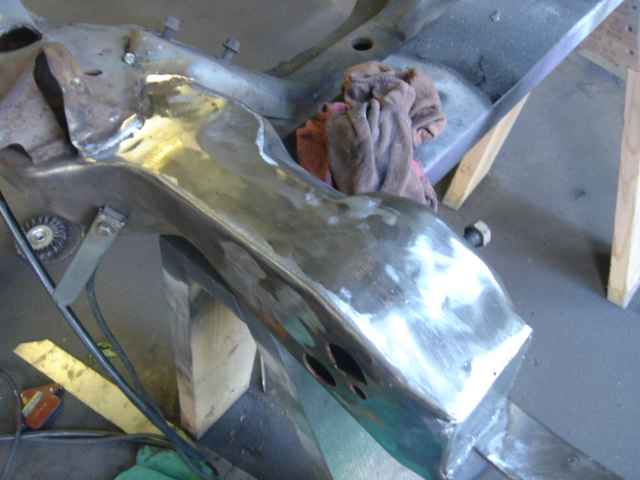

smoooooothhhhh
2006-08-06
Rendering by Nick @ surface
2006-08-06
Marking each body mount location with a threaded rod and bolt welded to the table
2006-08-22

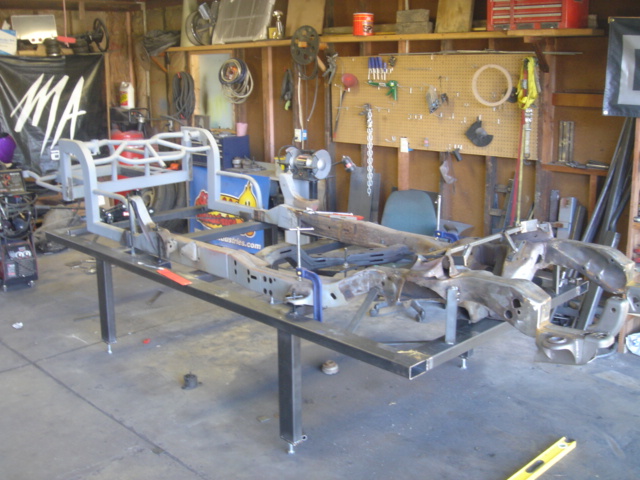

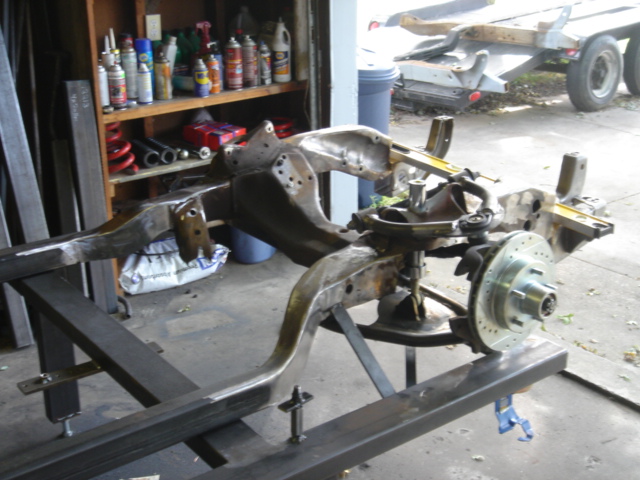

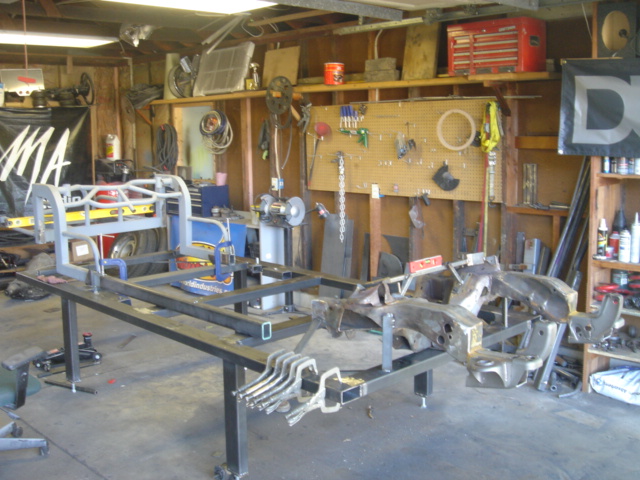

stock frame, on table and marked into place
2006-08-22
stock section of frame missing
2006-08-22

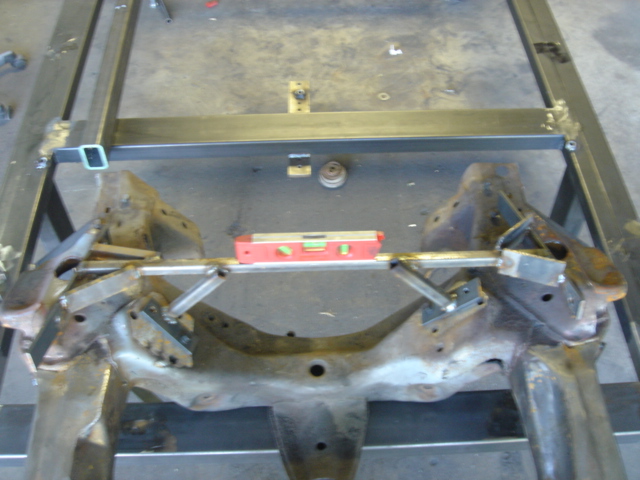

making a jig for the upper control arm mounts, so i can make custom ones later.
2006-08-22

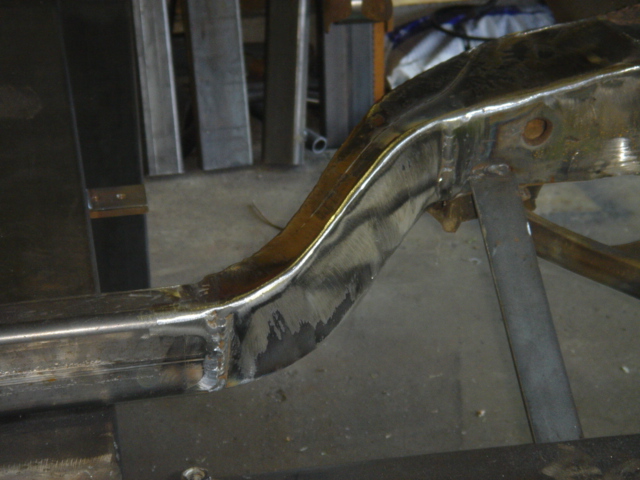

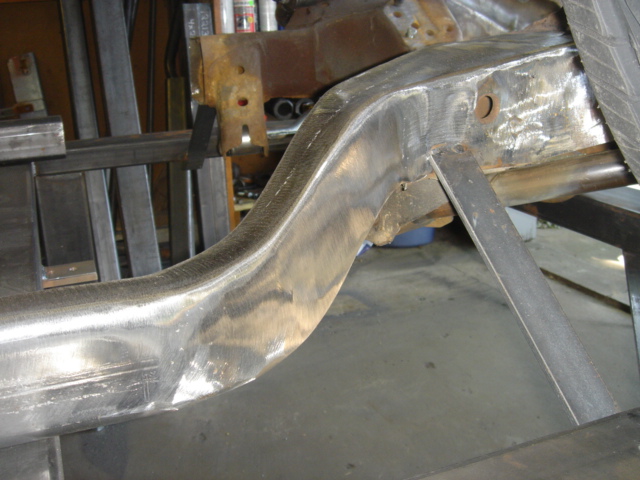

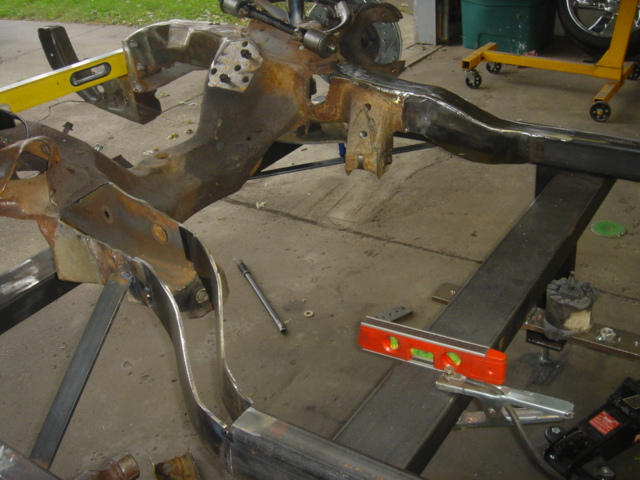

transition from custom frame to front clip
2006-09-06

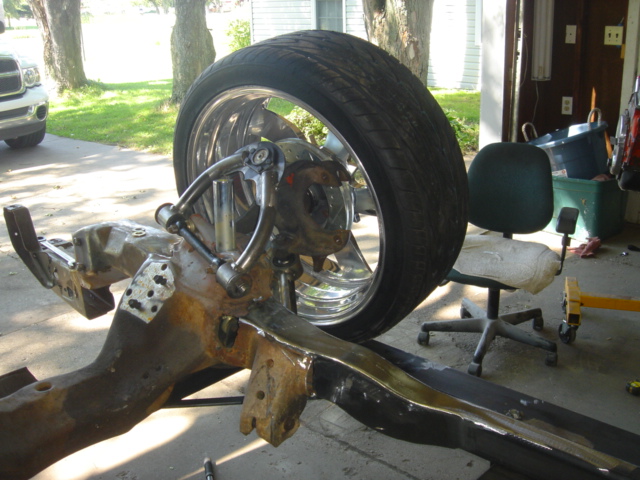

lays 20s fine
2006-09-06
another shot of teh frame smoothed out in the transition area
2006-09-06

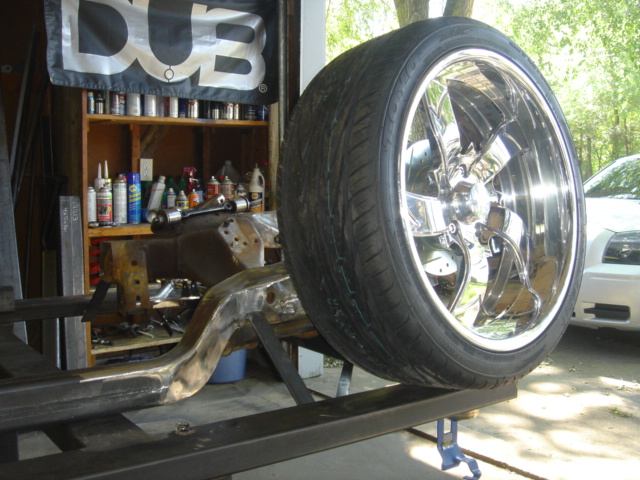

another view of the 20" titans laying out
2006-09-06
once again.........
2006-09-06

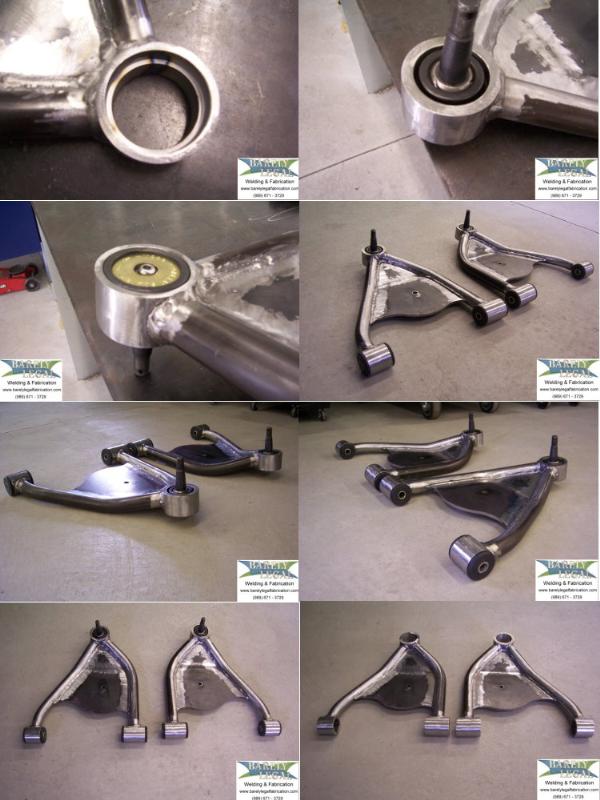

www.barelylegalfabrication.com best controls arms out!
2006-09-07

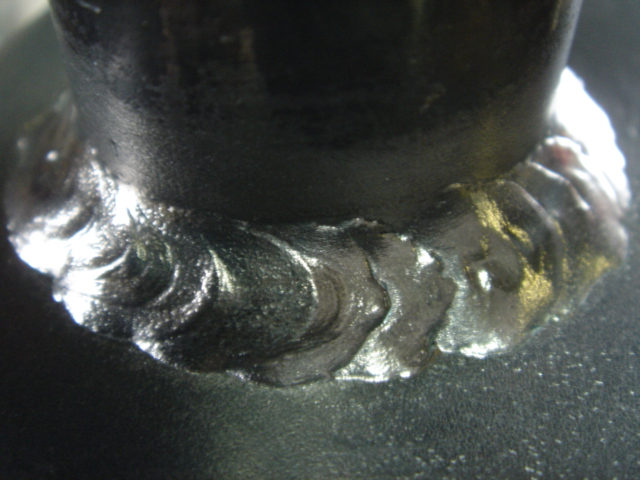

welding....mmmmmmmmm
2006-09-07

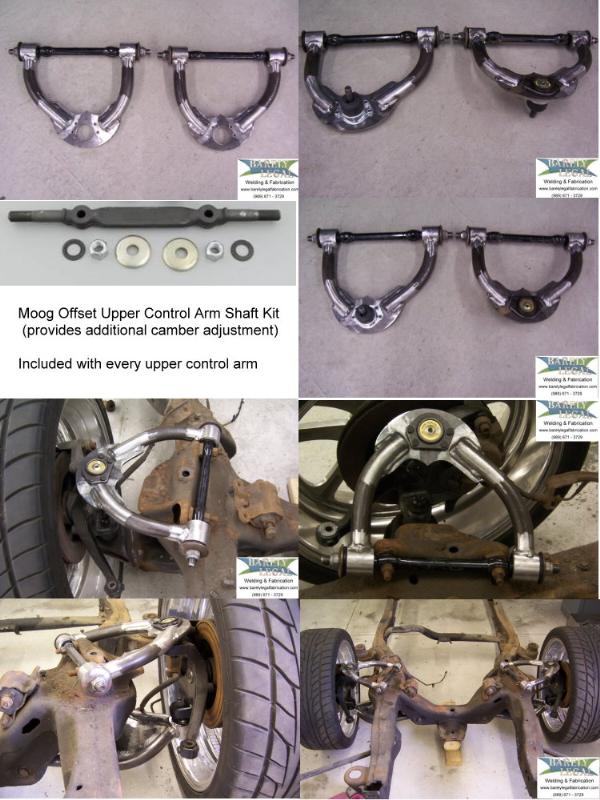

www.barelylegalfabrication.com uppers!
2006-09-07
Begining of the built of the drivers side rail
2006-09-10
the two side panels of the drivers side rail, bent and sitting place
2006-09-10

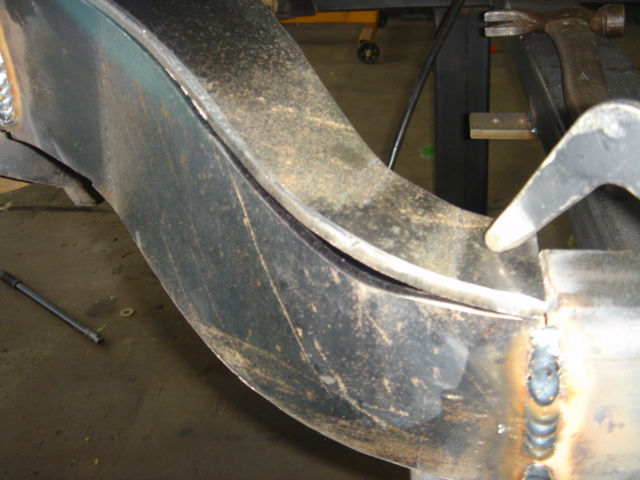

top piece of the puzzle being clamped into place
2006-09-10

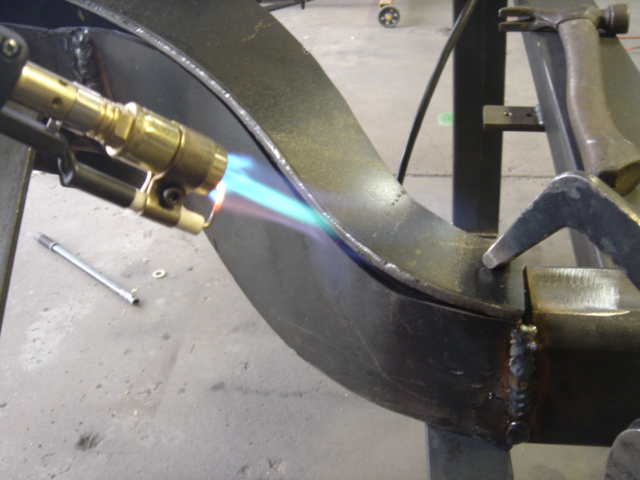

just alittle heat needed to get everything bent up correctly
2006-09-10

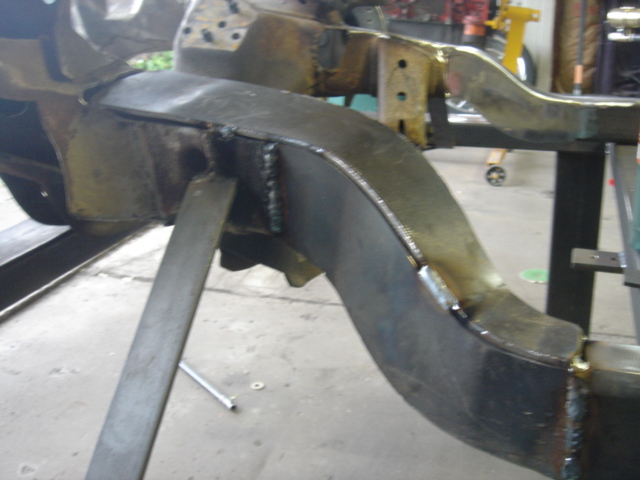

little weld on ware it will go
2006-09-10

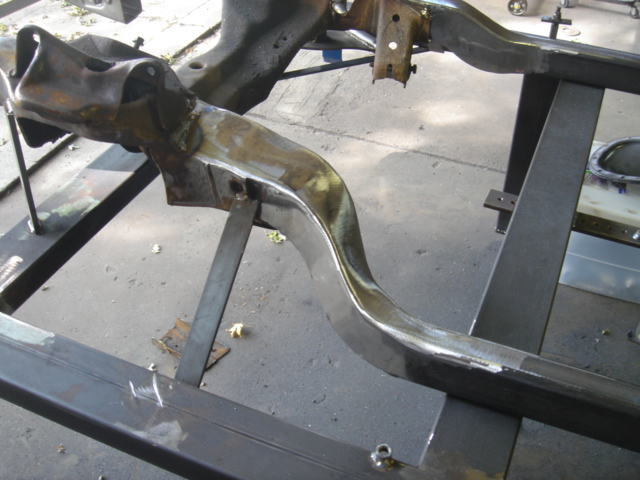

ground out smooth
2006-09-10

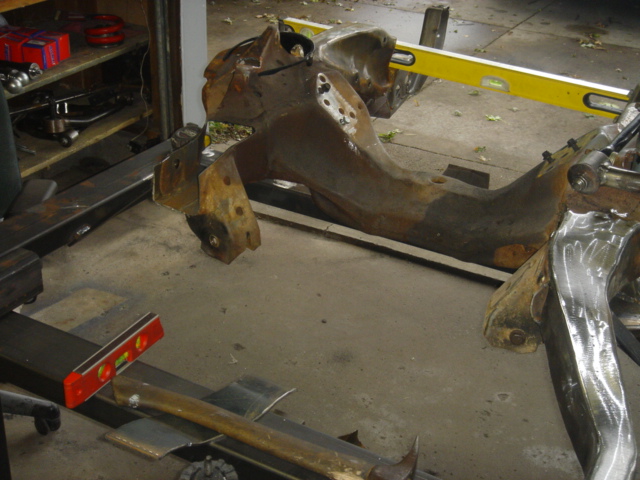

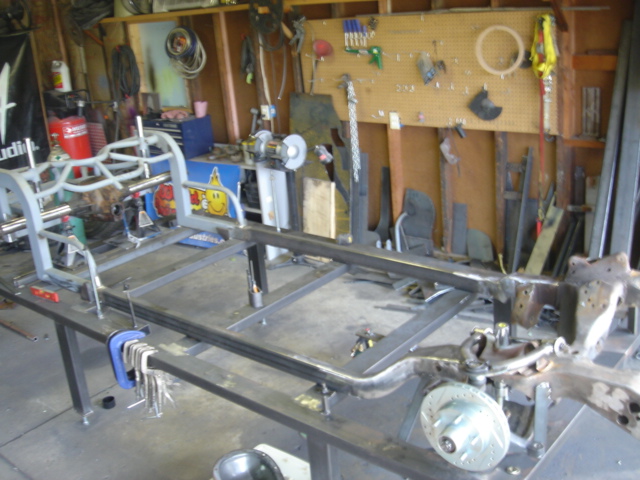

over view of the two rail transitions
2006-09-10
ready for bodymounts
2006-09-10

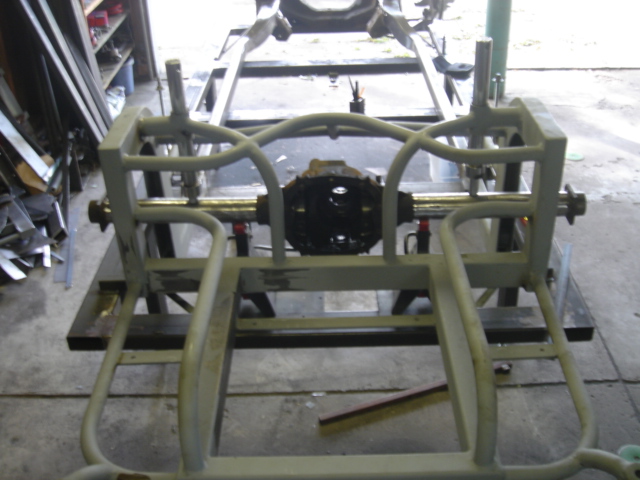

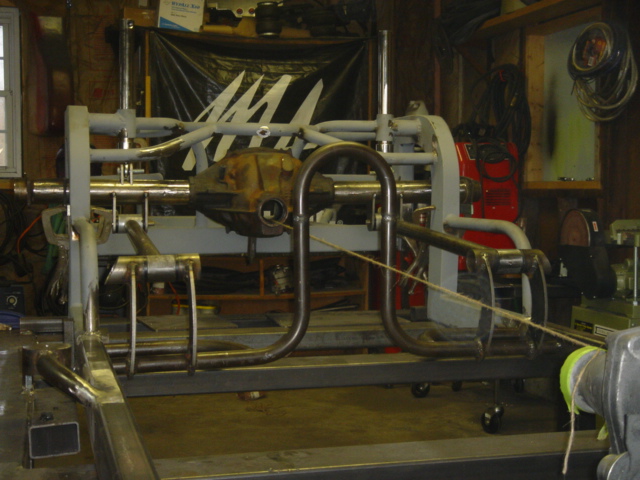

rear shot of the axle housing in place
2006-09-10
my front suspension, 6" cylinders, heims, and a mini coil
2006-09-10

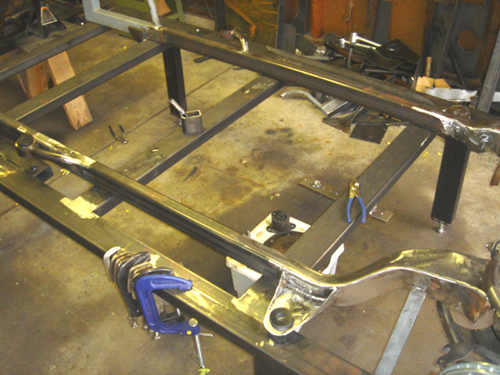

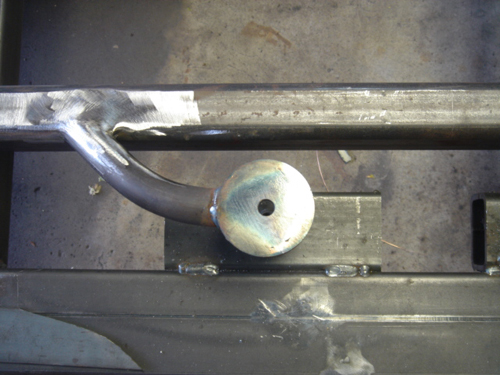

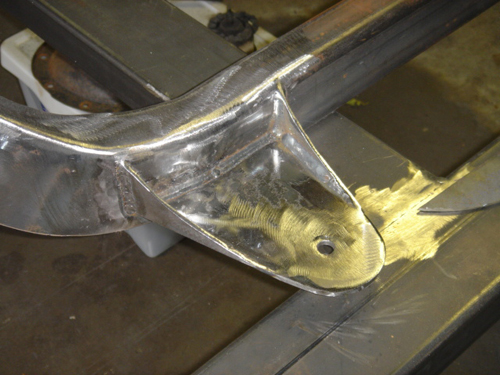

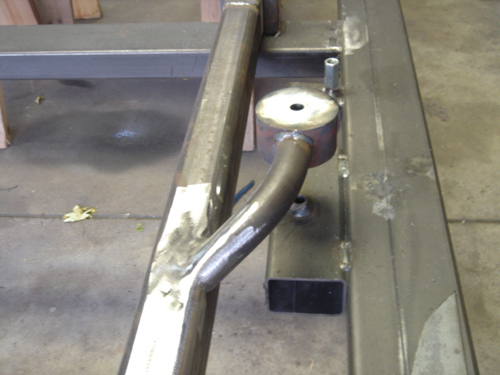

front bodymounts
2006-10-18
passinger front bodymount with bushing
2006-10-18

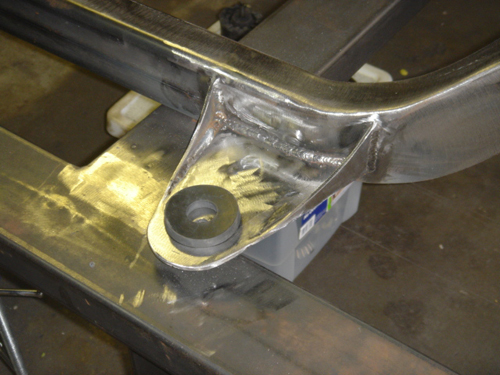

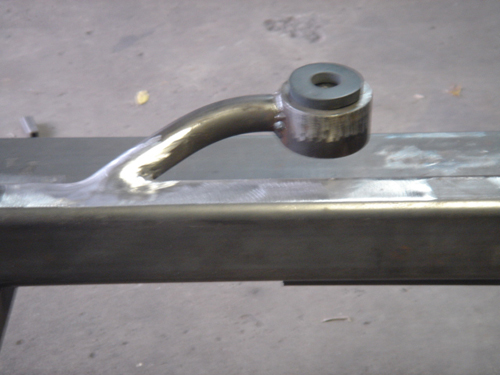

Drivers bodymount
2006-10-18
Rear body mounts
2006-10-18
again.....
2006-10-18
with bushing
2006-10-18

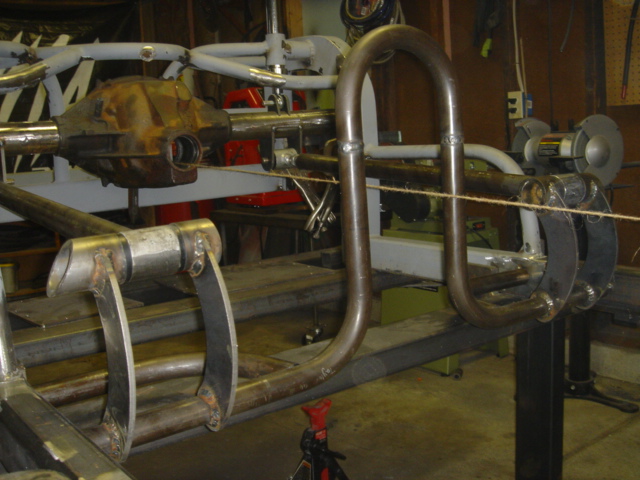

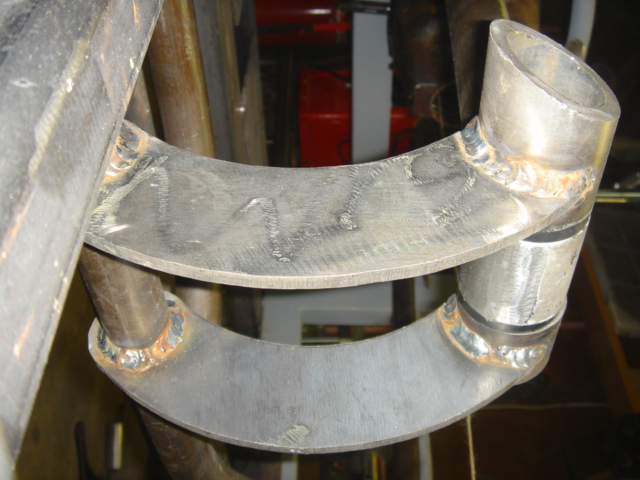

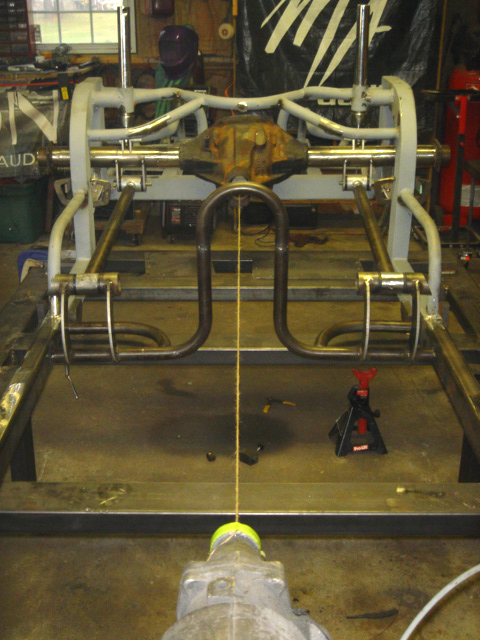

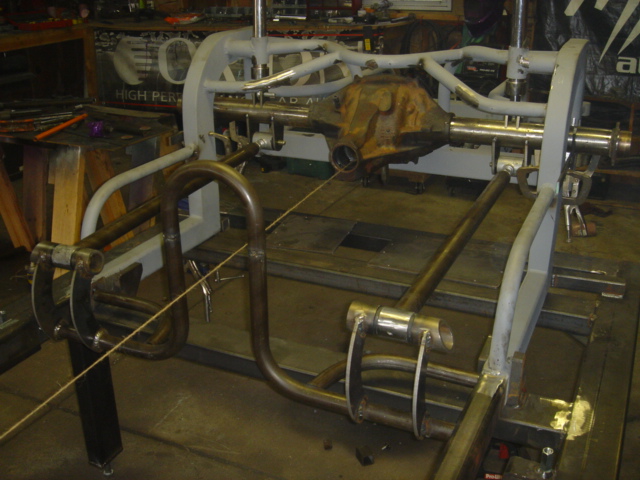

driveshaft hoooop, with link bars installed
2006-11-14
again
2006-11-14
nother angle
2006-11-14

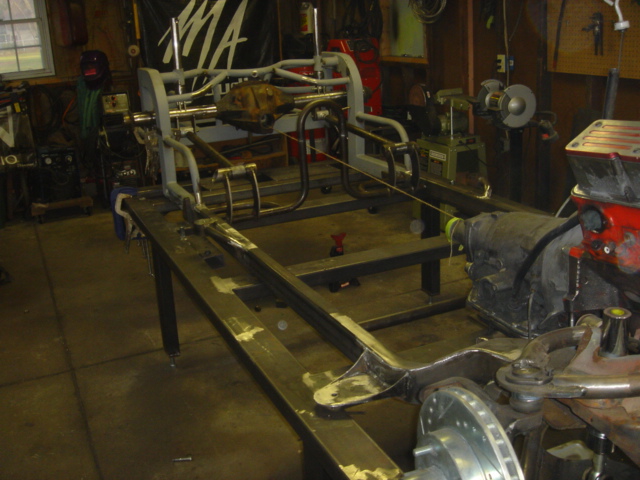

overview with the motor and tranny in.
2006-11-14
front bar mounts
2006-11-14
center view
2006-11-14
2006-12-11

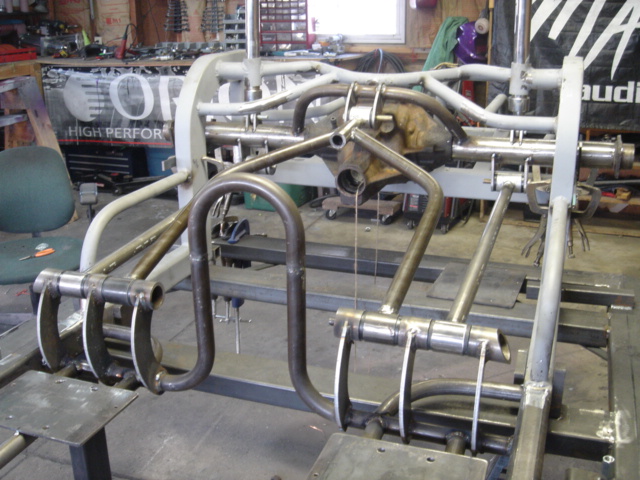

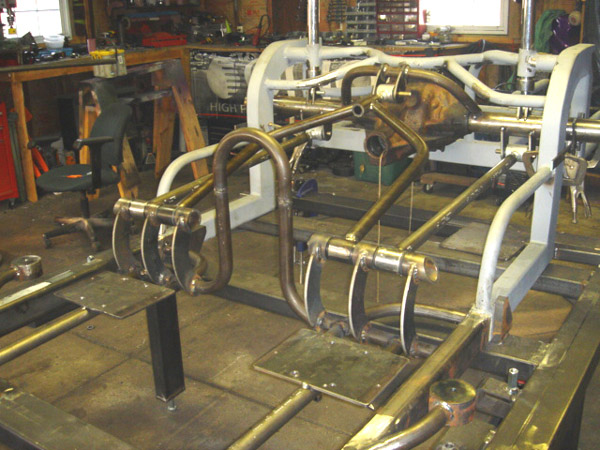

with wishbone installed
2006-12-11

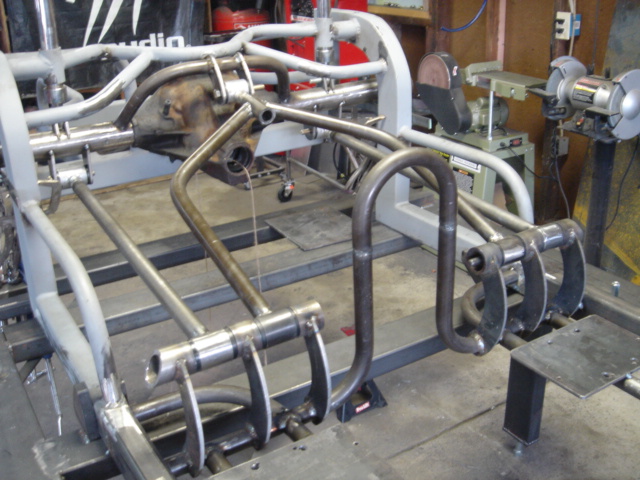

2nd view
2006-12-11

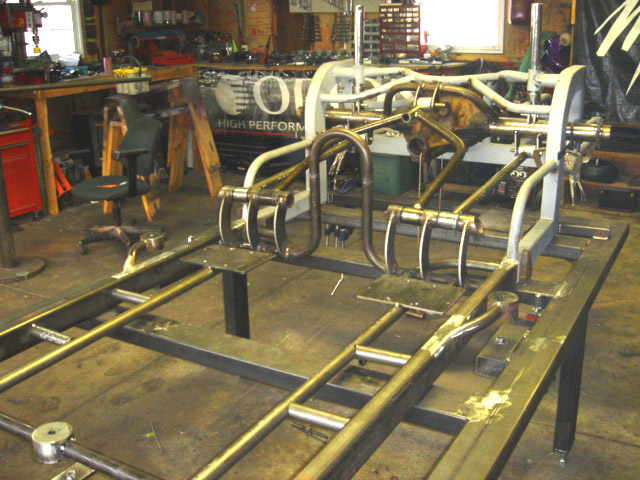

some other structural tubing added down the sides of the frame
2006-12-11

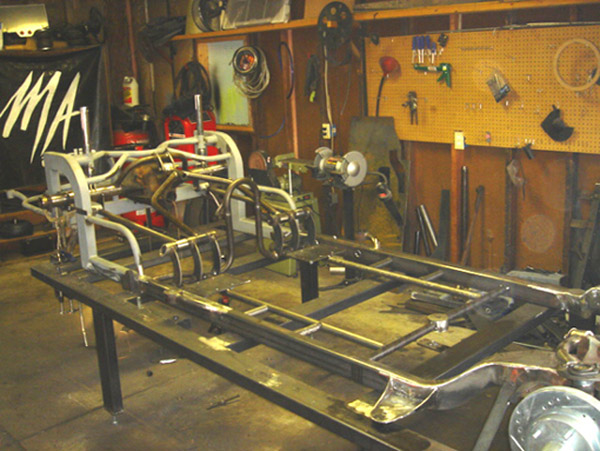

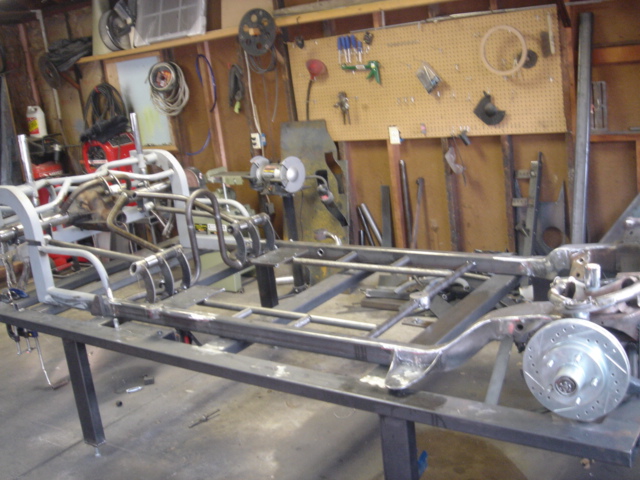

over view
2006-12-11

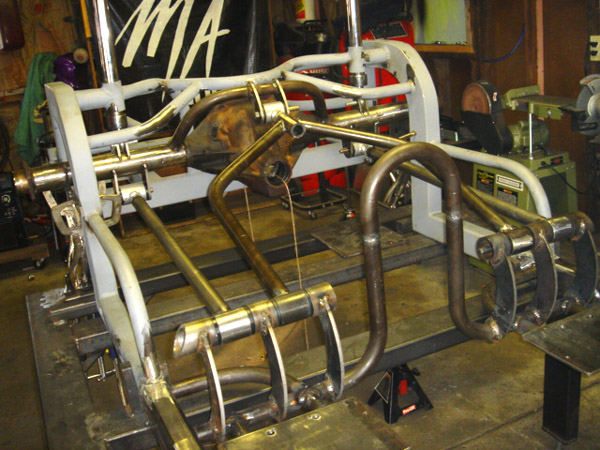

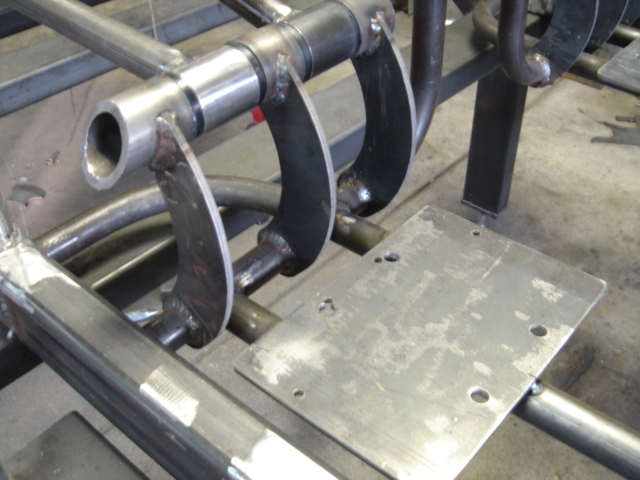

battery mounts
2006-12-11
another view
2006-12-11
yep
2006-12-11

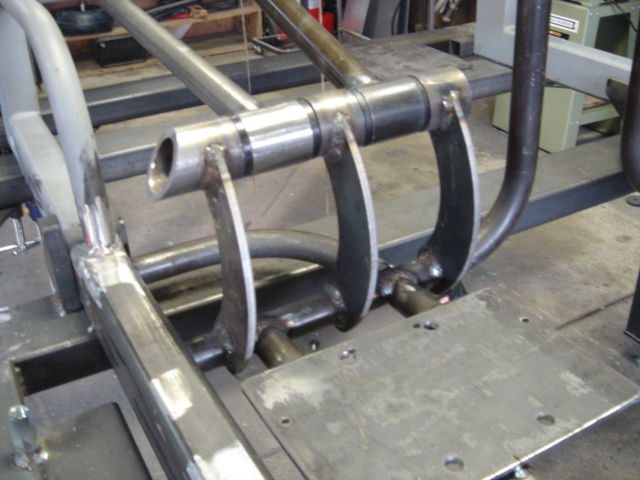

ok
2006-12-12
Finally! on the ground
2006-12-18

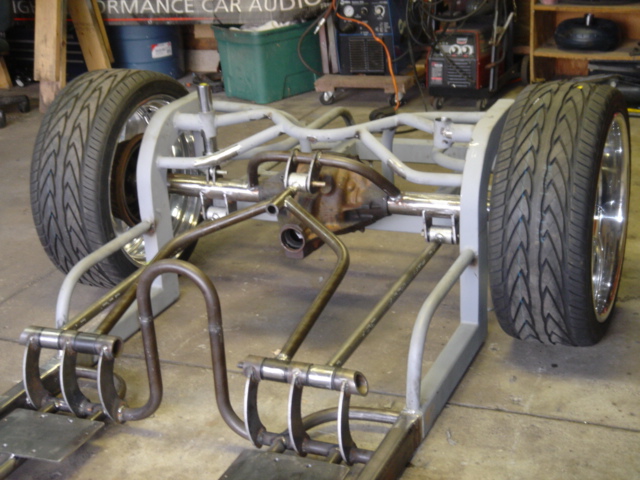

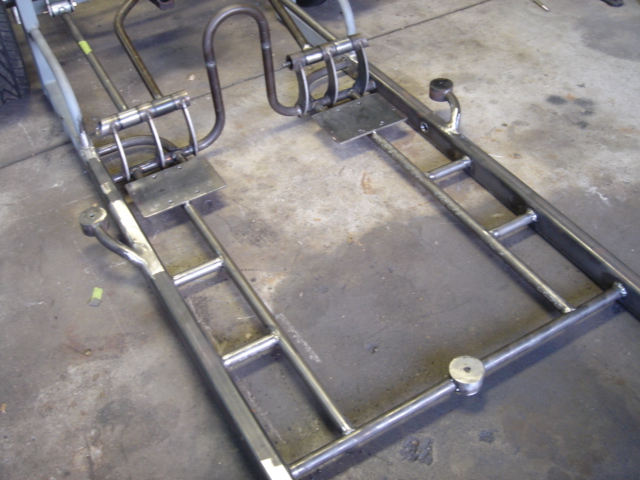

another shot of the middle section on the ground
2006-12-18

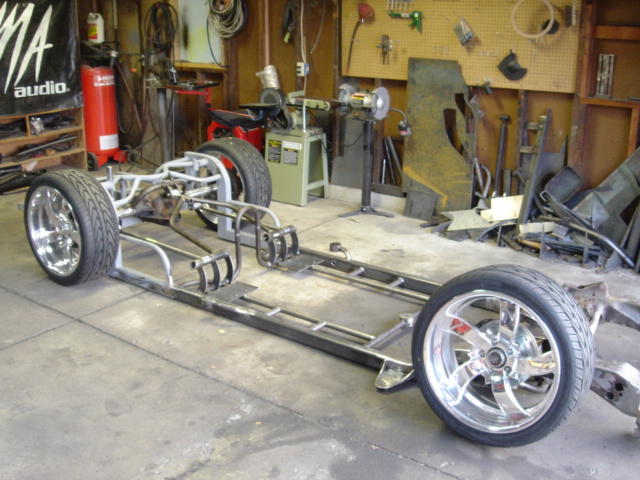

Shes a roller again!
2006-12-18
